Ürünler
ABB System 800xA DCS
System 800xA kapsamlı bir proses otomasyon sistemidir. System 800xA, geleneksel kontrol sistemlerinin kapsamını tüm otomasyon fonksiyonlarını tek bir operasyon ve mühendislik ortamında içerecek şekilde genişletir. Tesislerin önemli miktarda maliyet tasarrufuyla daha akıllı ve daha iyi performans göstermesini sağlar. System 800xA, ABB'nin AC 800M, AC 100, Advant/Master, Advant/MOD 300, DCI, Harmony/INFI 90, Melody, Freelance ve Safeguard gibi kontrolörleri ile kullanılabilir. Buna ek olarak 800xA, PLC Connect seçeneği kullanarak 400'den fazla diğer kontrol cihazına ve iletişim ağlarına bağlanabilir.
CONTROLLERS
+ AC 800M Controller
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|
| PM851AK01 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM851A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). Note that a PM851/PM851A is restricted to one Ethernet (CN1) port, thus redundant Ethernet is not available. One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. | Reliability and simple fault diagnosis procedures Modularity, allowing for step-by-step expansion IP20 Class protection without the requirement for enclosures The controller can be configured with 800xA control builder The controller has full EMC certification Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.) |  |
| PM856AK01 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM856A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. | Reliability and simple fault diagnosis procedures Modularity, allowing for step-by-step expansion IP20 Class protection without the requirement for enclosures The controller can be configured with 800xA control builder The controller has full EMC certification Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.) |  |
| PM857K01 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM857 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). The high integrity functionality is enabled by the addition of an SM812 module and the SIL-certified software. This enables non-critical control schemes to be upgraded to SIL-certified schemes by the addition of a plug-in SM81x module, plus a selection of the appropriate software. The AC 800M High-Integrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business-critical process control in one controller unit without sacrificing the safety integrity. The PM857 can handle Max 128 I/O signals. Certified for SIL3. Requires configuration according to Safety Manual. | ISA Secure certified - Read more AC 800M High up to SIL 3 certified using PM857/SM812, PM863/SM812, PM865/SM811 or PM867/SM812 Supports S800 I/O High Integrity (PM857, PM863, PM865, PM866A and PM891) The controller can be configured with 800xA control builder The controller has full EMC certification TÜV Certified SIL 2 and SIL 3 Built-in redundant Ethernet Communication ports |  |
| PM857K02 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM857 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). The high integrity functionality is enabled by the addition of an SM812 module and the SIL-certified software. This enables non-critical control schemes to be upgraded to SIL-certified schemes by the addition of a plug-in SM81x module, plus a selection of the appropriate software. The AC 800M High-Integrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business-critical process control in one controller unit without sacrificing the safety integrity. The PM857 can handle Max 128 I/O signals. Certified for SIL3. Requires configuration according to Safety Manual. Package including: 2 pcs PM857K01, Safety Processor unit 1 pcs TK850, CEX-bus expansion cable 1 pcs TK851, RCU-Link cable | ISA Secure certified - Read more AC 800M High up to SIL 3 certified using PM857/SM812, PM863/SM812, PM865/SM811 or PM867/SM812 Supports S800 I/O High Integrity (PM857, PM863, PM865, PM866A and PM891) The controller can be configured with 800xA control builder The controller has full EMC certification TÜV Certified SIL 2 and SIL 3 Built-in redundant Ethernet Communication ports |  |
| PM858K01 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM858 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. (Only compatible with System 800xA 6.0.2, Compact Control Builder 6.0.0-1 and onwards. Please see Product Update for more information.) | ISA Secure certified - Read more • Reliability and simple fault diagnosis procedures • Modularity, allowing for step-by-step expansion • IP20 Class protection without the requirement for enclosures • The controller can be configured with 800xA control builder • The controller has full EMC certification • Sectioned CEX-Bus using a pair of BC810 / BC820 • Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.) • Built-in redundant Ethernet Communication ports |  |
| PM858K02 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM858 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. (Only compatible with System 800xA 6.0.2, Compact Control Builder 6.0.0-1 and onwards. Please see product Update for more information.) Package including: 2 pcs PM858, CPU 2 pcs TP830, Baseplate 2 pcs TB807, ModuleBus terminator 1 pcs TK850, CEX-bus expansion cable 1 pcs TK851, RCU-Link cable 2 pcs Battery for memory backup (4943013-6) one for each controller | • ISA Secure certified - Read more • Reliability and simple fault diagnosis procedures • Modularity, allowing for step-by-step expansion • IP20 Class protection without the requirement for enclosures • The controller can be configured with 800xA control builder • The controller has full EMC certification • Sectioned CEX-Bus using a pair of BC810 / BC820 • Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.) • Built-in redundant Ethernet Communication ports |  |
| PM860AK01 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM860A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. | Reliability and simple fault diagnosis procedures Modularity, allowing for step-by-step expansion IP20 Class protection without the requirement for enclosures The controller can be configured with 800xA control builder The controller has full EMC certification Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.) |  |
| PM862K01 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM862 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. (Only compatible with System 800xA 6.0.2, Compact Control Builder 6.0.0-1 and onwards. Please see Product Update for more information.) | • ISA Secure certified - Read more • Reliability and simple fault diagnosis procedures • Modularity, allowing for step-by-step expansion • IP20 Class protection without the requirement for enclosures • The controller can be configured with 800xA control builder • The controller has full EMC certification • Sectioned CEX-Bus using a pair of BC810 / BC820 • Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.) • Built-in redundant Ethernet Communication ports |  |
| PM862K02 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM862 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. (Only compatible with System 800xA 6.0.2, Compact Control Builder 6.0.0-1 and onwards. Please see Product Update for more information.) Package including: 2 pcs PM862, CPU 2 pcs TP830, Baseplate, width = 115mm 2 pcs TB807, ModuleBus terminator 1 pcs TK850, CEX-bus expansion cable 1 pcs TK851, RCU-Link cable 2 pcs Battery for memory backup (4943013-6) one for each controller | • ISA Secure certified - Read more • Reliability and simple fault diagnosis procedures • Modularity, allowing for step-by-step expansion • IP20 Class protection without the requirement for enclosures • The controller can be configured with 800xA control builder • The controller has full EMC certification • Sectioned CEX-Bus using a pair of BC810 / BC820 • Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.) • Built-in redundant Ethernet Communication ports |  |
| PM863K01 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM863 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). The high integrity functionality is enabled by the addition of an SM812 module and the SIL-certified software. This enables non-critical control schemes to be upgraded to SIL-certified schemes by the addition of a plug-in SM81x module, plus a selection of the appropriate software. The AC 800M High-Integrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business-critical process control in one controller unit without sacrificing the safety integrity. Requires configuration according to Safety Manual. | ISA Secure certified - Read more AC 800M High up to SIL 3 certified using PM857/SM812, PM863/SM812, PM865/SM811 or PM867/SM812 Supports S800 I/O High Integrity (PM857, PM863, PM865, PM66A and PM891) The controller can be configured with 800xA control builder The controller has full EMC certification TÜV Certified SIL 2 and SIL 3 Built-in redundant Ethernet Communication ports |  |
| PM863K02 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM863 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). The high integrity functionality is enabled by the addition of an SM812 module and the SIL-certified software. This enables non-critical control schemes to be upgraded to SIL-certified schemes by the addition of a plug-in SM81x module, plus a selection of the appropriate software. The AC 800M High-Integrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business-critical process control in one controller unit without sacrificing the safety integrity. Requires configuration according to Safety Manual. Package including: 2 pcs PM863K01, Safety Processor unit 1 pcs TK850, CEX-bus expansion cable 1 pcs TK851, RCU-Link cable. | ISA Secure certified - Read more AC 800M High up to SIL 3 certified using PM857/SM812, PM863/SM812, PM865/SM811 or PM867/SM812 Supports S800 I/O High Integrity (PM857, PM863, PM865, PM66A, PM867 and PM891) The controller can be configured with 800xA control builder The controller has full EMC certification TÜV Certified SIL 2 and SIL 3 Built-in redundant Ethernet Communication ports |  |
| PM866AK01 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. | ISA Secure certified - Read more Reliability and simple fault diagnosis procedures Modularity, allowing for step-by-step expansion IP20 Class protection without the requirement for enclosures The controller can be configured with 800xA control builder The controller has full EMC certification Sectioned CEX-Bus using a pair of BC810 / BC820 Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.) Built-in redundant Ethernet Communication ports |  |
| PM866AK02 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. Package including: 2 pcs PM866A, CPU 2 pcs TP830, Baseplate, width =115mm 2 pcs TB807, ModuleBus terminator 1 pcs TK850, CEX-bus expansion cable 1 pcs TK851, RCU-Link cable 2 pcs Battery for memory backup (4943013-6) 1 for each CPU | ISA Secure certified - Read more Reliability and simple fault diagnosis procedures Modularity, allowing for step-by-step expansion IP20 Class protection without the requirement for enclosures The controller can be configured with 800xA control builder The controller has full EMC certification Sectioned CEX-Bus using a pair of BC810 / BC820 Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.) Built-in redundant Ethernet Communication ports |  |
| PM867K01 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM867 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). The high integrity functionality is enabled by the addition of an SM812 module and the SIL-certified software. The AC 800M High-Integrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business-critical process control in one controller unit without sacrificing the safety integrity. Only compatible for 800xA 6.0.2 and onwards. Please see Product Update for more information. | • ISA Secure certified - Read more • AC 800M High up to SIL 3 certified using PM865/SM811 or PM867/SM812 • Supports S800 I/O High Integrity (PM865, PM866A, PM867 and PM891) • The controller can be configured with 800xA control builder • The controller has full EMC certification • TÜV Certified SIL 2 and SIL 3 • Built-in redundant Ethernet Communication ports |  |
| PM867K02 | System 800xA DCS | AC 800M Controller | The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM867 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). The high integrity functionality is enabled by the addition of an SM812 module and the SIL-certified software. The AC 800M High-Integrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business-critical process control in one controller unit without sacrificing the safety integrity. Only compatible for 800xA 6.0.2 and onwards. Please see Product Update for more information. Package including: 2 pcs PM867, CPU 2 pcs TP830, Baseplate, width = 115mm 2 pcs TB807, ModuleBus terminator 1 pcs TK850, CEX-bus expansion cable 1 pcs TK851, RCU-Link cable 2 pcs Battery for memory backup (4943013-6) 1 for each CPU | • ISA Secure certified - Read more • AC 800M High up to SIL 3 certified using PM865/SM811 or PM867/SM812 • Supports S800 I/O High Integrity (PM865, PM866A, PM867 and PM891) • The controller can be configured with 800xA control builder • The controller has full EMC certification • TÜV Certified SIL 2 and SIL 3 • Built-in redundant Ethernet Communication ports |  |
| SM812 (HI controllers) | System 800xA DCS | AC 800M Controller | The prime function of SM812, is to provide intelligent supervision of a controller during non-SIL and SIL1-2 operations, and together with a PM867 form a 1oo2 diverse structure for SIL3 applications. For high availability applications it is possible to have redundant SM812´s that work together with any of the two redundant CPUs. SM812 has a dedicated synchronization link to synchronize active and redundant SM for hot-insert and online upgrade. It is needed during hot-insert and online upgrade situations to copy data between two SM812s in a redundant setup. The SM812 has a connector with three digital inputs and two digital outputs that can be used for safety-related digital I/O (not process I/O). | • MPC866 Microprocessor running at 133 Mhz • 64 MB RAM • Provides supervision of the PM857, PM863 and PM867 controller during SIL1-2 operations and together with the PM857, PM863 and PM867 forms a 1oo2 diverse architecture for SIL3 applications • Over voltage monitoring • Internal voltage monitoring • Supports hot swap • Supports redundancy • SM Link for synchronization of redundant pair | .png) |
| PM891K01 | System 800xA DCS | AC 800M Controller | The PM891 processor is a monolithic unit equipped with power supply, CPU-boards and unit termination. The unit contains microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button and a Secure Digital interface. The PM891 does not contain any internal battery The PM891 has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and one RJ45 serial port (COM4). The COM4 port is isolated and used for a configuration tool. The PM891 supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). The communication expansion bus (CEX-Bus) is mounted on the unit. The CEX-Bus is used for extending the on-board communication ports with communication interface units. It is possible to use redundant communication interfaces on the CEX-Bus. The CEX-Bus Interconnection unit BC810 is used to increase the availability on the CEX-Bus by dividing it into separate segments. The optical Modulebus of the unit can be used for connecting seven clusters of S800 I/O units (each comprising up to 12 units). Each PM891 is provided with a unique Ethernet address which provides hardware identity to the unit. | Reliability and simple fault diagnosis procedures Modularity, allowing for step-by-step expansion IP20 Class protection without the requirement for enclosures The controller has full EMC certification High performance and large application memory Sectioned CEX-Bus using a pair of BC810 Built-in redundant Ethernet Communication ports |  |
| PM891K02 | System 800xA DCS | AC 800M Controller | The PM891 processor is a monolithic unit equipped with power supply, CPU-boards and unit termination. The unit contains microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button and a Secure Digital interface. The PM891 does not contain any internal battery The PM891 has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and one RJ45 serial port (COM4). The COM4 port is isolated and used for a configuration tool. The PM891 supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). The communication expansion bus (CEX-Bus) is mounted on the unit. The CEX-Bus is used for extending the on-board communication ports with communication interface units. It is possible to use redundant communication interfaces on the CEX-Bus. The CEX-Bus Interconnection unit BC810 is used to increase the availability on the CEX-Bus by dividing it into separate segments. The optical Modulebus of the unit can be used for connecting seven clusters of S800 I/O units (each comprising up to 12 units). Each PM891 is provided with a unique Ethernet address which provides hardware identity to the unit. Package including: 2 pcs PM891K01 Processor Unit 1 pcs TK850V007 CEX-bus Extension Cable 1 pcs TK855 RCU Data Link Cable 1 pcs TK856 RCU Control Link Cable Please note: The BC810K02 is not included in the PM891K02 Redundant Processor Unit kit. In order to make hot replacement of PM891 Processor Unit possible, the BC810K02 is required and has to be ordered separately. | Reliability and simple fault diagnosis procedures Modularity, allowing for step-by-step expansion IP20 Class protection without the requirement for enclosures The controller has full EMC certification High performance and large application memory Sectioned CEX-Bus using a pair of BC810 Built-in redundant Ethernet Communication ports |  |
| BC810K02 (Accessories) | System 800xA DCS | AC 800M Controller | The BC810 unit consists of two basic parts: baseplate (TP857) and power supply/logic board. The baseplate is where the connectors to CEX-Bus and the external power reside. It is grounded to the DIN-rail through metal parts of the housing. The board also carries the external power voting diode and fuse. The power supply and logic board contain the +3.3 V converter, logic, drivers for CEX-Bus interconnection, and the connector for the interconnection cable. The BC810 can be used with PM857, PM861A, PM862, PM863, PM864A, PM865, PM866, PM866A, PM867 and PM891. In a fully redundant system with two interlinked BC810 and primary/backup CPU pair, the BC810 support online replacement of the CPU baseplate without disturbing the CEX traffic. If the BC810 has to be replaced, all traffic to the connected CEX segment is stopped. The CEX-Bus is used for extending the onboard communication ports with communication interface units. It is also possible to use redundant communication interfaces on the CEX-Bus. The CEX-Bus Interconnection unit BC810 is used to increase the availability of the CEX-Bus by dividing it into separate segments. This improves the availability of systems with redundant communication interfaces. | • Supports redundant communication interface units. • Supports on-line replacement of the CPU. • External power supply. • Supports hot swap | - |
| BC820K02 (Accessories) | System 800xA DCS | AC 800M Controller | The CEX-Bus unit BC820 is used for extending the onboard communication ports with communication interface units. It is also possible to use redundant communication interfaces on the CEX-Bus. The BC820 CEX-Bus Interconnection Unit offers a way to section the CEX-Bus into two independent segments up to 200 meters apart. This improves availability in systems with redundant communication interfaces. The BC820 can be used with PM858, PM862, PM866 (PR.F or later, which corresponds to PR:H or later for PM866K01), and PM866A. The BC820 is powered from the processor unit via the CEX-Bus and can also support the CEX-Bus with redundant power through its external connector for power supply. BC820 transmits the RCU-Link and extends the CEX-Bus and RCU-Link cable length up to 200 m. The number of CEX-Bus interfaces is limited to 6 with each BC820. You need to provide the following cables at a suitable length (not included in the BC820K02 kit): RCU Control Link: Modular Jack, RJ45, shielded twisted pair crossover cable with all four pairs crossed: EIA/TIA-568 standard crossover T568A to T568B. Length: max 200m. RCU Data Link: The optical interconnection is compatible with LC Duplex optical connector interface conforming to ANSI TIA/EIA60-10 (FOCIS 10A). The type of optical cable is 50/125μm OM3 fiber. Length: max 200m. For more information about the cables see 3BSE036351-* | • Supports redundant communication interface units. • Supports on-line replacement of the CPU. • External power supply. • Supports hot swap. | - |
| Compact Flash Card 4GB (Accessories) | System 800xA DCS | AC 800M Controller | Compact Flash memory card for AC 800M controllers. Size 4 GB. Replaces the MB801V512 Compact Flash Card (3BSE042257R1). | Conforms to CF Type I standards CompactFlash 4.0 compliant ATA interface Low power consumption | - |
| SB822 (Accessories) | System 800xA DCS | AC 800M Controller | - |
COMMUNICATIONS
+ AC 800M Communication interface
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|
| CI854B | System 800xA DCS | AC 800M Communication interface | PROFIBUS DP is a high speed multipurpose bus protocol (up to 12Mbit/s) for interconnecting field devices, like remote I/O, drives, low voltage electrical equipment, and controllers. PROFIBUS DP can be connected to the AC 800M via the CI854B communication interface. The CI854B includes two PROFIBUS ports to realize line redundancy and it also supports PROFIBUS master redundancy.Master redundancy is supported in PROFIBUS-DP communication by using two CI854B communication interface modules. The master redundancy can be combined with CPU redundancy and CEXbus redundancy (BC810). The modules are mounted on a DIN rail and interface directly with the S800 I/O system, and other I/O systems as well, including all PROFIBUS DP/DP-V1 and FOUNDATION Fieldbus proficient systems. The PROFIBUS DP must be terminated at the two outermost nodes. This is usually done by using connectors with built-in termination. To guarantee a correct working termination the connector has to be plugged and power supplied. Package including: a CI854BK01 Communication Interface and a TP854 Baseplate. (Only compatible with System 800xA 6.0.3.2, Compact Control Builder 6.0.0-2 and onwards. Please see Product Update for more information.) | Used for connecting remote I/O and fieldbus instruments via PROFIBUS DP Possible to connect PROFIBUS PA to the CI854B via the PROFIBUS linking device LD 800P The CI854B can be set redundant |  |
| CI855 | System 800xA DCS | AC 800M Communication interface | The MasterBus 300 (MB300) communication protocol used in communication between controllers, and operator stations in installations based on Advant OCS with Master software is also implemented in the System 800xA controller AC 800M. MB 300 communication is realized in AC 800M by communication interface CI855, which is connected to the CEX-Bus through a baseplate. The baseplate, TP853, houses RJ45 connectors for two Ethernet ports, for network redundancy and provides a simple DIN-rail mounting. A key benefit of the CI855 interface is the possibility of having peer-to-peer communication between new plant sections with System 800xA using the AC 800M controller and existing sections with MB 300-based controllers like Advant Controller 410, Advant Controller 450, and MasterPiece 200/1. | MB 300 network redundancy Clock synchronization DataSet communication Hot swap Per to peer communication |  |
| CI856 | System 800xA DCS | AC 800M Communication interface | S100 I/O communication is realized in AC 800M by communication interface CI856, which is connected to the CEX-Bus through a base plate. The baseplate, TP856, houses a ribbon connector connecting to bus extender boards in S100 I/O racks and provides a simple DIN-rail mounting. Up to five S100 I/O racks can be connected to one CI856 where each I/O rack can hold up to 20 I/O boards. The CI856 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source. | A key benefit with the CI856 interface is the possibility to reuse the majority of the existing I/O installation, including terminations and field wiring in existing ABB Master and Advant OCS installations. Single connection to S100 I/O units located in up to five I/O racks Code locking device to prevent mounting of incompatible components Hot swap functionality |  |
| CI857 | System 800xA DCS | AC 800M Communication interface | INSUM integration into AC 800M supports higher functionality integration, multidrop configurations, time distribution and time stamping in the switchgear, and utilizes standard Ethernet technology for longer communication distances. The speed of this solution is typically 500 ms for one closed loop (indication from one motor until operation of another, assuming 250 ms cycle time in control execution). AC 800M controllers access the INSUM functions through function blocks in the INSUM Communication Library. The CI857 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source. | Maximum number of MCUs (or other INSUM devices) per AC 800M: – 256 MCUs (or other INSUM devices) per AC 800M with PM864 or PM866. – 128 MCUs (or other INSUM devices) per AC 800M with PM861. Maximum 6 CI857 per AC 800M. Maximum 128 MCUs (or other INSUM devices) per CI857. Maximum 2 INSUM TCP/IP Gateways per CI857. Maximum 128 INSUM devices per INSUM TCP/IP gateway. Four LonWorks subnets per INSUM TCP/IP gateway. Maximum 32 devices per LonWorks subnet. |  |

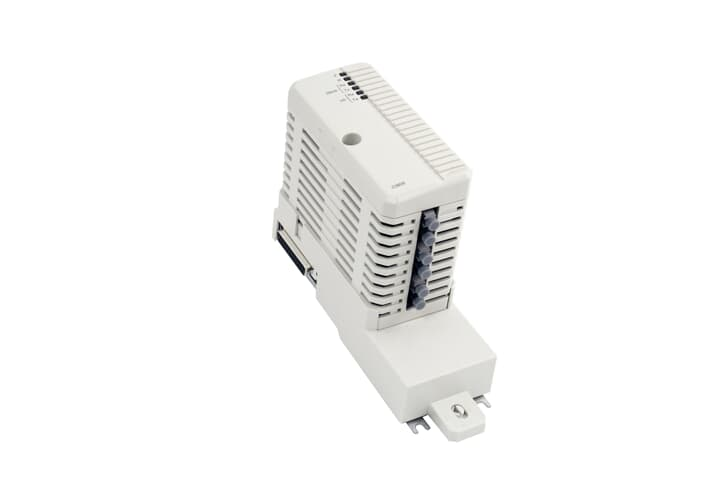

| CI858 | System 800xA DCS | AC 800M Communication interface | The DriveBus protocol is used to communicate with ABB Drives and ABB Special I/O units. DriveBus is connected to the controller via a CI858 communication interface unit. The DriveBus interface is used for communication between ABB Drives and AC 800M controller. The DriveBus communication is especially designed for sectional drive applications for ABB rolling mill drive systems, and ABB paper machine control systems. The CI858 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source. | DriveBus supports Hot Swap A maximum of 24 ABB drives can be connected to one CI858 and a maximum of two CI858 can be connected to an AC 800M controller. If more than one ABB drive is connected to the CI858, a branching unit NDBU is needed, which enables the construction of a logical bus with physical star topology. The branching units can be chained. |  |
| CI860 | System 800xA DCS | AC 800M Communication interface | If there is a need to have access to FF process variables in the AC 800M controller, connectivity between the HSE subnet and the controller is established with the CI860 - the Communication Interface FOUNDATION Fieldbus HSE. Then FOUNDATION Fieldbus process data on HSE can be accessed from the IEC 61131 applications in the AC 800M controllers. For this purpose, the CI860 module maps the value and status parts of the FF signals to the IEC 61131 application and vice versa. The CI860 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source. | The CI860 can be used in redundant mode Up to twelve CI860 modules can be placed at one AC800 M also in redundant mode, and each of them can be connected to the same or to a separate FOUNDATION Fieldbus HSE subnet. The ABB FOUNDATION Fieldbus Linking Device LD800HSE/LD 800HSE EX acts as a gateway between the HSE subnet and up to four separate H1 links. |  |
| CI862 Classic | System 800xA DCS | AC 800M Communication interface | TRIO, interface integrates TRIO/Genius I/O as a native AC 800M I/O. The TRIO interface to the AC 800M is via the CI862 CEX module. This module supports direct connection for one TRIO LAN and provides a port for the Hand Held Monitor. A single CI862 can connect 30 blocks to a single LAN. The AC 800M can have up to four single LANs or four redundant LANs. The maximum I/O with TRIO in an AC 800M is 1000 IO points. The CI862 can be set redundant. The CI862 is the communication interface to the TRIO blocks (remote I/O) and manages the channel data for the AC 800M controller. | The AC 800M controller supports up to four CI862 CEX modules and 1,000 TRIO/Genius I/O points. TRIO supports CEX module redundancy. The CI862 unit also handles the I/O configuration and I/O scanning of up to 30 TRIO blocks. |  |

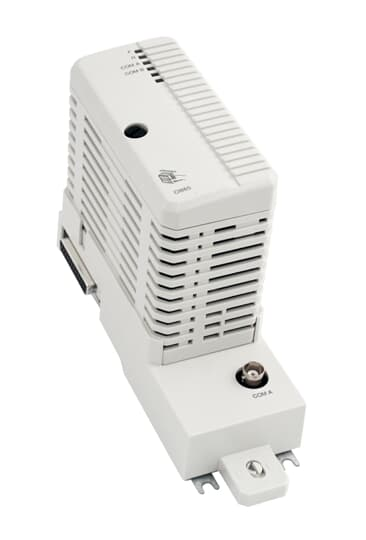

| CI865 | System 800xA DCS | AC 800M Communication interface | The CI865 module is the AC 800M system’s communication interface for Satt ControlNet and bridges different bus standards used on AC 800M and Satt ControlNet. The CI865 module makes it possible to use older Satt I/O system (Rack I/O and Series 200 I/O) with the AC 800M controller platform, but it cannot be used as a general ControlNet interface. CI865 cannot be used in a High Integrity controller. | Satt 19 inch rack I/O, a rack-based I/O system, can be connected to AC 800M using the CI865 interface module CI865 supports online replacement (Hot Swap), and does not require any configuration before installation The CI865 unit handles I/O scanning of up to 31 distributed I/O systems |  |
| CI867A | System 800xA DCS | AC 800M Communication interface | MODBUS TCP is an open industry standard widely spread due to its ease of use. It is a request-response protocol and offers services specified by function codes. MODBUS TCP combines the MODBUS RTU with standard Ethernet and the universal networking standard TCP. It is an application-layer messaging protocol, positioned at level 7 of the OSI model. The CI867A/TP867 is used for connection between an AC 800M controller and external Ethernet devices using Modbus TCP protocol. The CI867 expansion unit contains the CEX-Bus logic, a communication unit, and a DC/DC converter that supplies appropriate voltages from the +24 V supply via the CEX-Bus. The Ethernet cable must be connected to the main network through an Ethernet switch. The CI867A only uses one Ethernet port (100 Mbit/s) compared with the earlier CI867, where two Ethernet ports could be used (100 Mbit/s and 10 Mbit/s). The CI867A module will only work with System 800xA 6.0.3.3, 6.1.1, and subsequent versions. | The CI867A can be set redundant and supports hot swap. CI867A is a single channel Ethernet unit; Ch1 supports full duplex with 100 Mbps speed. Both master and slave functionality are supported. A maximum of 70 slave and 8 master units per CI867A can be used. |  |
| CI868A | System 800xA DCS | AC 800M Communication interface | The CI868A can be used to connect an AC 800M controller to external Ethernet devices using IEC 61850 – Edition 2 standard. Since this is a standard for Substation Automation, this allows the combination of Process Automation and Electrical Control in the same controller. The TP868 Baseplate has two RJ45 Ethernet connectors, where CH1 connector can use 10Mbps or 100Mbps (Mega bits/sec.).The baseplate has a code lock that prevents the installation of an incorrect type of unit onto the TP867 Baseplate. The CI868 expansion unit contains the CEX-Bus logic, a communication unit and a DC/DC converter that supplies appropriate voltages from the +24 V supply via the CEX-Bus. The Ethernet cable must be connected to the main network through an Ethernet switch. The CI868A module will only work with System 800xA 6.0.3.3, 6.1.1 and subsequent versions | Allows communication via both protocols defined by IEC 61850 standard: MMS (client) and GOOSE A maximum of 120 IEDs (GOOSE) and 40 IEDs (MMS) is allowed per CI868A. The combination of both protocols in the same module is allowed. (40IEDs /CI868A) Up to 12 modules can be used in one AC 800M Controller |  |
| CI869 | System 800xA DCS | AC 800M Communication interface | The CI869 is an AC 800M communication interface that connects to the AF 100 field bus through the twisted pair (TWP). The CI869 expansion unit contains the CEX-Bus logic, a communication unit, and a DC/DC converter that supplies the required voltage from +24 V supply through the CEX-Bus. The CI869 can be configured for both redundant cables and redundant communication interfaces. The CI869 communication interface attached to the AC 800M controller provides connectivity to other AC 800M, AC 160 or a connectivity server over AF 100. An AC 800M controller with the communication interface CI869 behaves as an AF 100 station, receiving data from other AF 100 stations/devices. The CI869 has integrated twisted pair modems. CI869 can also be used in an AC 800M High Integrity system. | The AC 100 OPC Server runs in the Connectivity Server and requires the AF 100 hardware interface CI527A installed in the same node as the AC 100 OPC Server. In the other end you use the CI869 to connect to the AC 800M controller network. Advant Fieldbus 100 redundancy is supported by using two CI869s. |  |

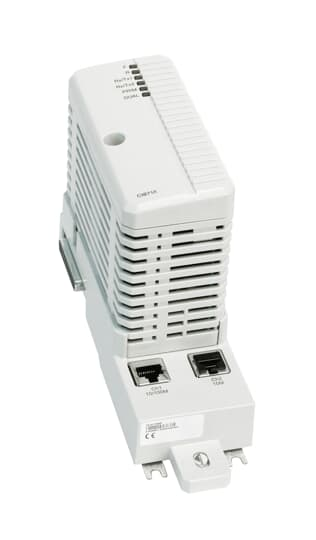

| CI871A | System 800xA DCS | AC 800M Communication interface | The CI871A is an AC 800M communication interface that connects to the PROFINET IO devices through Ethernet. The TP867 Baseplate has two RJ45 Ethernet connectors, but only the CH1 connector that supports 100Mbps is used for PROFINET IO connection. The Ethernet cable must be connected to the PROFINET IO network through an Ethernet switch. The CI871 expansion unit contains the CEX-Bus logic, a communication unit, and a DC/DC converter that supplies the required voltage from +24 V supply through the CEX-Bus. The CI871A module will only work with System 800xA 6.0.3.3, 6.1.1 and subsequent versions | Connects PROFINET IO devices through Ethernet |  |
| CI873A | System 800xA DCS | AC 800M Communication interface | The CI873A is an AC 800M communication interface that connects to external Ethernet devices using the EtherNet/IP protocol. The TP867 Baseplate has two RJ45 Ethernet connectors, but only the CH1 connector that supports 100Mbps is used. The CI873 expansion unit contains the CEX-Bus logic, a communication unit, and a DC/DC converter that supplies the required voltage from +24 V supply through the CEX-Bus. The CI873A module will only work with System 800xA 6.0.3.3, 6.1.1 and subsequent versions. The CI873A support 6 redundant pairs of CI873A from 5.1 FP4. | Supports Ethernet/IP and Device Net protocols Support 6 redundant pairs of CI873A from 5.1 FP4 |  |
| CI874 | System 800xA DCS | AC 800M Communication interface | The CI874 is an AC 800M communication interface that connects to external Ethernet devices using the OPC UA protocol. The TP867 Baseplate has one RJ45 Ethernet connector that supports 100Mbps. The CI874 expansion unit contains the CEX-Bus logic, a communication unit, and a DC/DC converter that supplies the required voltage from +24 V supply through the CEX-Bus. CI874 is represented as a hardware module within the Control Builder hardware tree. The CI874 module will only work with System 800xA 6.1.1 and subsequent versions. | CI874 supports connection with OPC UA servers CI874 can be configured as redundant User can perform the upgrade of CI874 software components, called as online upgrade CI874 has a Web Server Interface who offers access to CI874 specific information used during commissioning and maintenance CI874 supports hot swap without any configuration changes |  |
+ S800 IO Communication interface
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|
| CI801 | System 800xA DCS | S800 IO Communication interface | S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The CI801 Fieldbus Communication Interface (FCI) module is a configurable communication interface that performs operations such as signal processing, gathering of supervision information, OSP handling, Hot Configuration InRun, HART pass-trough and configuration of I/O modules. The FCI connects to the controller through of the PROFIBUS-DPV1 fieldbus. | PROFIBUS DP PROFIBUS-DPV1 fieldbus interface. Supervisory functions of I/O ModuleBus Isolated power supply to I/O modules OSP handling and configuration Input power fused Hot Configuration In Run HART pass-through |  |
| CI840A | System 800xA DCS | S800 IO Communication interface | S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The CI840 Fieldbus Communication Interface (FCI) module is a configurable communication interface that performs operations such as signal processing, gathering of various supervision information, OSP handling, Hot Configuration In Run, HART pass-through and configuration of I/O modules. CI840 is designed for redundant applications. The FCI connects to the controller by way of the PROFIBUS-DPV1 fieldbus. Module termination units to use, TU846 with redundant I/O and TU847 with non-redundant I/O. | PROFIBUS DP PROFIBUS-DPV1 fieldbus interface. Supervisory functions of I/O ModuleBus Isolated power supply to I/O modules OSP handling and configuration Input power fused Hot Configuration In Run HART pass-through |  |
| CI845 | System 800xA DCS | S800 IO Communication interface | S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The CI801 Fieldbus Communication Interface (FCI) module is a configurable communication interface that performs operations such as signal processing, gathering of supervision information, OSP handling, Hot Configuration InRun, HART pass-trough and configuration of I/O modules. The FCI connects to the controller through of the PROFIBUS-DPV1 fieldbus. | PROFIBUS DP PROFIBUS-DPV1 fieldbus interface. Supervisory functions of I/O ModuleBus Isolated power supply to I/O modules OSP handling and configuration Input power fused Hot Configuration In Run HART pass-through |  |
| TB820V2 | System 800xA DCS | S800 IO Communication interface | S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The TB820V2 ModuleBus Modem is a fiber optic interface to the ModuleBus. The ModuleBus Modem has an electric and an optical interface which are logically the same bus. A maximum of 12 I/O modules can be connected to the electrical ModuleBus and up to seven clusters can be connected to the fiber optic ModuleBus. The fiber optic interface is intended for local distribution of I/O clusters and where more than 12I/O modules are required in an I/O station. | 2 fiber optic ports to optical ModuleBus ModuleBus (electrical) to the I/O Modules Supervisory functions of I/O ModuleBus and power supply Isolated power supply to I/O modules TB820/TB820V2 has a rotary switch that selects its cluster number, 1 to 7, on the optical ModuleBus |  |
| TB825 (Multi Mode) | System 800xA DCS | S800 IO Communication interface | S800 I/O is a comprehensive. distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The TB825 ModuleBus Optical media converter, converts between plastic opto fiber or HCS fiber with versatile link connectors and glass optical fiber with ST connetcors. The TB825 is built in S800L mechanics and DIN rails mounted. TB825 allows distribution of the optical ModuleBus up to 1000 m per cluster in star configurations. | Converts between plastic or HCS optp fiber and glass optical fiber DIN rail mounted Multi Mode functionallity S800L mechanics | .png) |
| TB826 (Single Mode) | System 800xA DCS | S800 IO Communication interface | S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. TB826 is a Long range Optical Media Converter for the ModuleBus. It is used to convert between plastic/opto fiber of HCS fiber with versatile link connectors and single mode field fiber with SC connector. The TB826 is built in S800L mechanics and DIN rail mounted. TB826 allows distribution of the optical ModuleBus up to 5000 m per cluster in star configurations. | Converts between plastic or HCS opto fiber and glass optical fiber DIN rail mounted Allows distribution of optical ModuleBus up to 5000 m per cluster in star configurations S800L mechanics | .png) |
| TB840A | System 800xA DCS | S800 IO Communication interface | S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The TB840 ModuleBus Modem is a fiber optic interface to the Optical ModuleBus. TB840A is used in redundancy configurations where each module is connected to different optical ModuleBus lines, but connected to the same electrical ModuleBus. The ModuleBus Modem has an electrical and an optical Modulebus interface which are logically the same bus. A maximum of 12 I/O modules can be connected to the electrical ModuleBus and up to seven clusters can be connected to the fiber optic ModuleBus. The fiber optic interface is intended for local distribution of I/O clusters and where more than 12 I/O modules are required in an I/O station. | 2 fiber optic ports to optical ModuleBus ModuleBus (electrical) to the I/O Modules Supervisory functions of I/O ModuleBus and power supply Isolated power supply to I/O modules TU840, MTU for redundant TB840/TB840A, dual ModuleBus TU841, MTU for redundant TB840/TB840A, single ModuleBus Input power fused |  |
| TB842 | System 800xA DCS | S800 IO Communication interface | TB842 ModuleBus Optical Port is a communication interface between the CI801 or CI840/CI840A FCI and the TB820/TB820V2/TB840/TB840A ModuleBus modem of an I/O cluster or ABB drives units via the Optical ModuleBus. TB842 connects to CI801 via TB806 and to CI840/CI840A via TU847 and TB806 for single I/O or via TU846 and TB846 for redundant I/O. TB842 can be used in both a simplex optical configuration as well as in a duplex optical configuration. In a simplex configuration, the optical ModuleBus nodes are connected in a ring. In a duplex configuration, the optical ModuleBus nodes are connected in a row. TB842 has a connector for fiber optic connections and a connection to the communication interface module. The module is equipped with a Transmitter/Receiver for up to 10 Mbit/s. Both plastic and HCS (Hard Clad Silica) optic fiber with connectors (Agilent’s, former Hewlett-Packard, Versatile Link) can be used with the TB842. A Modulebus must have the same type of transmitter/receiver on each node. | 1 fiber optic port for the Optical ModuleBus expansion •Connection to CI801 and CI840/CI840A |  |
| TC810 | System 800xA DCS | S800 IO Communication interface | - | ||
| TC811 | System 800xA DCS | S800 IO Communication interface | - | ||
| TU807 | System 800xA DCS | S800 IO Communication interface | The TU807 is a module termination unit (MTU) for single configuration of Optical ModuleBus Modem TB840/TB840A. The MTU is a passive unit having connections for power supply, a single electrical ModuleBus, one TB840/TB840A and a rotary switch for cluster address (1 to 7) setting. | Support for single modulebus I/O Including 1 pcs of TB807 A rotary switch for cluster address setting Mechanical keying prevents insertion of wrong module type Single ModuleBus connection Latching device to DIN rail for locking and grounding DIN rail mounted |  |
| TU840 | System 800xA DCS | S800 IO Communication interface | The TU840 is a module termination unit (MTU) for redundant configuration of Optical ModuleBus Modem TB840/TB840A. The MTU is a passive unit having connections for power supply, double electrical ModuleBus, two TB840/TB840A and a rotary switch for cluster address (1 to 7) setting. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. The configurations can be changed with a screwdriver. Termination Unit TU840 connects TB840/TB840A to redundant I/O. Termination Unit TU841 connects TB840/TB840A to non-redundant I/O. | A rotary switch for cluster address setting Mechanical keying prevents insertion of wrong module type Double ModuleBus connection Latching device to DIN rail for locking and grounding DIN rail mounted |  |
| TU841 | System 800xA DCS | S800 IO Communication interface | The TU841 is a module termination unit (MTU) for redundant configuration of Optical ModuleBus Modem TB840/TB840A, for use with non-redundant I/O. The MTU is a passive unit having connections for power supply, a single electrical ModuleBus, two TB840/TB840A and a rotary switch for cluster address (1 to 7) setting. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. The configurations can be changed with a screwdriver. Termination Unit TU840 connects TB840/TB840A to redundant I/O. Termination Unit TU841 connects TB840/TB840A to non-redundant I/O. | A rotary switch for cluster address setting • Mechanical keying prevents insertion of wrong module type • Single ModuleBus connection • Latching device to DIN rail for locking and grounding • DIN rail mounted |  |

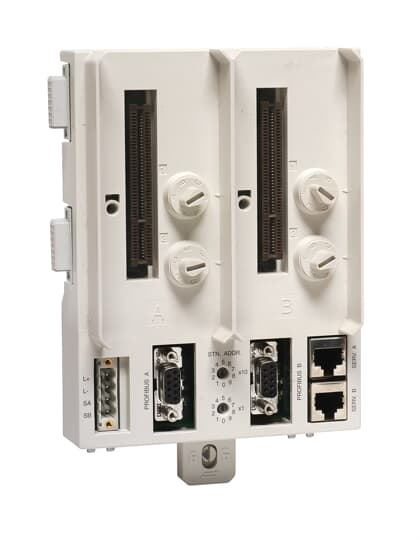

| TU846 | System 800xA DCS | S800 IO Communication interface | The TU846 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A and redundant I/O. The MTU is a passive unit having connections for power supply, two electrical ModuleBuses, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU846 via TB846. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. Module Termination Unit for dual CI840/CI840A, redundant I/O. TU846 are used with redundant I/O modules and TU847 with single I/O modules. The maximum ModuleBus length from the TU846 to the ModuleBus terminator is 2.5 meters. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. | The TU846 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A and redundant I/O. The MTU is a passive unit having connections for power supply, two electrical ModuleBuses, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU846 via TB846. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. Module Termination Unit for dual CI840/CI840A, redundant I/O. TU846 are used with redundant I/O modules and TU847 with single I/O modules. The maximum ModuleBus length from the TU846 to the ModuleBus terminator is 2.5 meters. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. |  |
| TU847 | System 800xA DCS | S800 IO Communication interface | The TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. The MTU is a passive unit having connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU847 via TB806. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. TU847 is also available in a G3 compliant version (TU847Z). | • Power supply connection. • Two PROFIBUS connections. • Two service tool connections. • Two rotary switch for station address setting. • ModuleBus connections. • Connector for ModuleBus Optical Port. • Mechanical keying prevents insertion of the wrong module type. • Latching device to DIN rail for locking and grounding. • DIN rail mounted. |  |
| TU848 | System 800xA DCS | S800 IO Communication interface | The TU848 is a module termination unit (MTU) for redundant configuration of Optical ModuleBus Modem TB840/TB840A. The MTU is a passive unit having connections for double power supply (one for each modem), double electrical ModuleBus, two TB840/TB840A and a rotary switch for cluster address (1 to 7) setting. Two mechanical keys are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. The configurations can be changed with a screwdriver. Termination unit TU848 has individual power supply connections and connects TB840/TB840A to redundant I/O. Termination unit TU849 has individual power supply connections and connects TB840/TB840A to non-redundant I/O. | • Dual power supply connection • A rotary switch for cluster address setting • Mechanical keying prevents insertion of wrong module type • Redundant ModuleBus • Latching device to DIN rail for locking and grounding • DIN rail mounted |  |
| TU849 | System 800xA DCS | S800 IO Communication interface | The TU849 is a module termination unit (MTU) for redundant configuration of Optical ModuleBus Modem TB840/TB840A. The MTU is a passive unit having connections for double power supply, one for each modem, a single electrical ModuleBus, two TB840/TB840A and a rotary switch for cluster address (1 to 7) setting. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. The configurations can be changed with a screwdriver. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be locked/unlocked with a screwdriver. Termination unit TU848 has individual power supply connections and connects TB840/TB840A to redundant I/O. Termination unit TU849 has individual power supply connections and connects TB840/TB840A to non-redundant I/O. | • Dual power supply connection • A rotary switch for cluster address setting • Mechanical keying prevents insertion of wrong module type • Single ModuleBus connection • Latching device to DIN rail for locking and grounding • DIN rail mounted |  |
| TU860 | System 800xA DCS | S800 IO Communication interface | S800 I/O is a comprehensive, distributed, and modular process I/O system that communicates with parent controllers over industry-standard fieldbus technology. The TU860 is an MTU for S800 I/O on Ethernet and connects up to 12 single or redundant S 800I/O Modules and Module Termination Units and hosts single or redundant Ethernet Adapters (TC810, TC811) and Ethernet FCI Communications Interface Modules (CI845s) for reliable communications with the AC 800M process controllers. | Two mounting slots for connecting single/redundant CI845 FCI modules Two mounting slots for connecting single/redundant Ethernet Adapters Two connectors for connecting single/redundant 24 V power supplies Two Modulebus connectors for connecting the I/O cluster (only S800 I/O modules can be connected) Mountable on a 35 mm DIN rail |  |
+ Select IO Communication interface
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|
| CI845 | System 800xA DCS | Select IO Communication interface | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The CI845 Ethernet Fieldbus Communication Interface Module (FCI) is responsible for communications of S800 I/O or Select I/O to the AC 800M controllers. For redundant configurations, two CI845s are required to be installed in the TU860 or TU865 Ethernet Field Communications Interface MTUs. | Can be used as single or redundant Supports both Select I/O and S800 on Ethernet -Supports 12 single or 12 redundant S800 I/O modules -Supports up to 192 Select I/O channels Possible to use with single or redundant 24V power supplies Built-in power voting Built-in supervision of power supply A and power supply B Built-in cabinet temperature measurement Built-in diagnostics Soft marshalling Optimized engineering HART v7, HART pass-through HART variables to the application (Select I/O) Sequense of Events Supports hot swap Can be used in hazardous area Mechanical locking slider which turns off power before removal Mechanical keying LED indicators | |
| HI880 | System 800xA DCS | Select IO Communication interface | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. HI880 is a High Integrity Module who enables High Integrity SIL3 communication with the Select I/O. | Can be used as single or redundant Supports both Select I/O and S800 on Ethernet -Supports 12 single or 12 redundant S800 I/O modules -Supports up to 192 Select I/O channels Possible to use with single or redundant 24V power supplies Built-in power voting Built-in supervision of power supply A and power supply B Built-in cabinet temperature measurement Built-in diagnostics Soft marshalling Optimized engineering HART v7, HART pass-through HART variables to the application (Select I/O) Sequense of Events Supports hot swap Can be used in hazardous area Mechanical locking slider which turns off power before removal Mechanical keying LED indicators |  |
| TC810 | System 800xA DCS | Select IO Communication interface | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. TC810 is an Ethernet Adapter for copper media with a built-in 2 port (RJ45) switch. For redundant configurations, two Ethernet Adapters TC810s are required to be installed in the TU860 or TU865 Ethernet Field Communications Interface MTUs. | Can be used as single or redundant Supports both Select I/O and S800 on Ethernet Hosts two RJ45 ports Built-in switch Built-in diagnostics Supports hot swap Can be used in hazardous area Mechanical locking slider which turns off power before removal Mechanical keying LED indicators |  |
| TC811 | System 800xA DCS | Select IO Communication interface | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. TC811 is an Ethernet Adapter for fiber optic media with a built-in 2-port switch. Hosts two LC ports. For redundant configuration two Fieldbus Communication Interfaces CI845, two Ethernet Adapters TC811, and one TU860 or one TU865 are needed. | Can be used as single or redundant Supports both Select I/O and S800 on Ethernet Hosts two LC ports Built-in switch Built-in diagnostics Supports hot swap Can be used in hazardous area Mechanical locking slider which turns off power before removal Mechanical keying LED indicators |  |
| TU865 | System 800xA DCS | Select IO Communication interface | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. The TU865 is an Ethernet Fieldbus Communication Interface Module Termination Unit (MTU) for connection to up to 12 Select I/O MTUs and hosts single and redundant Ethernet Adapters (TC810, TC811) and Ethernet FCI Communications Interface Modules (CI845s) for reliable communications with the AC 800M controllers. The TU865 also hosts an optional High Integrity Module (HI880) for use in SIL 3 safety applications and mounting is on a vertical DIN rail. One TL814K01 cover plate is included with every TU865. |  |
IO MTUS
+ S800 IO
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|
| TU805K01 | System 800xA DCS | S800 IO | The TU805K01 is a kit consisting of 10 pcs TU805. TU805 is a 16-channel 50 V terminal unit for the S800 I/O modules DI801 and DO801. The Terminal Unit is a passive unit for the distribution of external process power. | Enables 2- and 3-wire connections of process signals. Direct mounting on the I/O module. Requires no extra space. |  |
| TU810V1 | System 800xA DCS | S800 IO | The TU810/TU810V1 is a 16 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Compact installation of I/O modules using one-wire connections. Up to 16 channels of field signals and process power connections. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU811V1 | System 800xA DCS | S800 IO | The TU811V1 is a 8 channel 250 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Compact installation of I/O modules. Up to 8 isolated channels of field signals. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU812V1 | System 800xA DCS | S800 IO | The TU812V1 is a 50 V compact module termination unit (MTU) for the S800 I/O system with 16 signal connections. The MTU is a passive unit used for connection of the field wiring. It also contains a part of the ModuleBus. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Compact installation of I/O modules using D-sub connector. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU813 | System 800xA DCS | S800 IO | The TU813 is a 8 channel 250 V compact module termination unit (MTU) for the S800 I/O. The TU813 has three rows of crimp snap-in connectors for field signals and process power connections. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Compact installation of I/O modules. Up to 8 isolated channels of field signal connections with crimped snap-in connectors. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU814V1 | System 800xA DCS | S800 IO | The TU814V1 MTU can have up to 16 I/O channels and two process voltage connections. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The TU814V1 has three rows of crimp snap-in connectors for field signals and process power connections. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | 16 channels for 24 V d.c. inputs with current sourcing 2 Isolated groups of 8 with voltage supervision Input status indicators |  |
| TU818 | System 800xA DCS | S800 IO | The TU818 is a 32 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Compact installation of I/O modules using one-wire or two-wire (depends on I/O module type) connections. Up to 32 channels of field signals and process power connections. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU819 | System 800xA DCS | S800 IO | The TU819 is a 50 V compact module termination unit (MTU) for the S800 I/O system with 32 signal connections. The MTU is a passive unit used for connection of the field wiring. It also contains a part of the ModuleBus. The TU819 MTU can have up to 32 I/O signals. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Compact installation of I/O modules using D-sub 25 connector. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting |  |

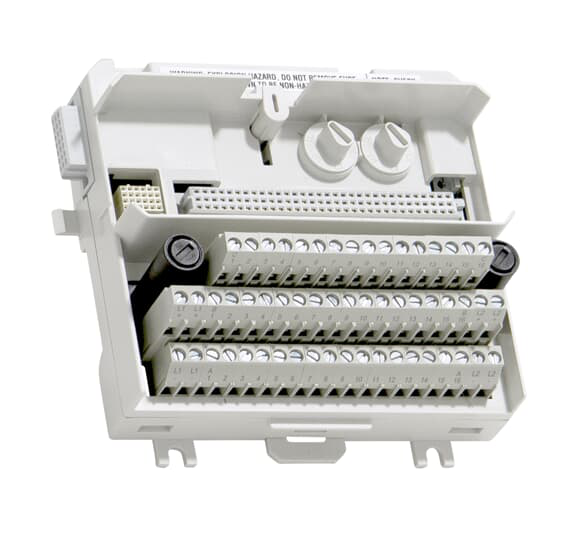

| TU830V1 | System 800xA DCS | S800 IO | The TU830V1 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the I/O module end to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. | Complete installation of I/O modules using 3-wire connections, fuses and field power distribution. Up to 16 channels of field signals and process power connections. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU831V1 | System 800xA DCS | S800 IO | The TU831V1 MTU can have up to 8 I/O channels. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. | Greater connection area for larger wires. Up to 8 isolated channels of field signals. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |

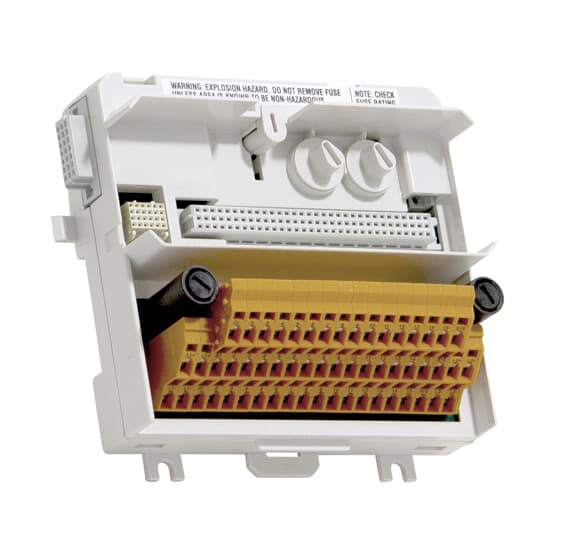

| TU833 | System 800xA DCS | S800 IO | The TU833 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. It is recommended that the fuse rating be chosen to meet the applications needs, see S800 I/O Getting Started chapter Power and Cooling. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. | Complete installation of I/O modules using 3-wire connections, fuses and field power distribution. Up to 16 channels of field signals and process power connections. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. Spring-case terminal. |  |
| TU834 | System 800xA DCS | S800 IO | The TU834 MTU can have up to 8 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. Input signals are connected via individual shunt sticks, TY801. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. | Complete installation of I/O modules using 2-wire connections and field power distribution. Up to 8 channels of field signals and process power connections. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. Include 8 individual shunt sticks. |  |
| TU835V1 | System 800xA DCS | S800 IO | The TU835V1 MTU can have up to 8 I/O channels. The maximum rated voltage is 50V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Up to 8 channels of field signals and process power connections. Each channel has one fused transducer power terminal and one signal connection. Process voltage can be connected to 2 individually isolated groups. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU836V1 | System 800xA DCS | S800 IO | The TU836V1 MTU can have up to 8 I/O channels. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Two groups with 4 channels of field signals and process power connections. Each channel has one fused load power terminal and one signal return connection. Process voltage can be connected to 2 individually isolated groups. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU837V1 | System 800xA DCS | S800 IO | The TU837V1 MTU can have up to 8 I/O channels. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Up to 8 individually isolated channels of field signals and process power connections. Each channel has two terminals and one is fused. Allows a mix of isolated and grouped channels. Process voltage return can be connected to two individually isolated groups. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU838 | System 800xA DCS | S800 IO | The TU838 MTU can have up to 16 I/O channels. The maximum rated voltage is 50 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Complete installation of I/O modules using 3-wire connections, fuses and field power distribution. Up to 16 channels of field signals and 8 process power connections. Two channels share one fused transducer power terminal. Process voltage can be connected to 2 individually isolated groups, if the I/O module supports it. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU839 | System 800xA DCS | S800 IO | The TU839 MTU can have up to 8 I/O channels and two groups of connections for sensor power distribution. Each channel has two I/O connections. The process voltage can be connected to two individually isolated groups for sensor power distribution. Each group has a 200 mA fuse. The maximum rated voltage is 250 V and maximum rated current is 1 A per channel. It is recommended that the fuse rating be chosen to meet the applications needs. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | 8 individually isolated I/O channels. Two individually isolated, fused groups for sensor power distribution. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU842 | System 800xA DCS | S800 IO | The TU842 MTU can have up to 16 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. The maximum rated voltage is 50 V and maximum rated current is 3 A per channel. The MTU distributes the two ModuleBuses to each I/O module and to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. Four mechanical keys, two for each I/O module, are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Complete installation of I/O modules using 3-wire connections and field power distribution. Up to 16 channels of field signals and process power connections. Connections to two ModuleBuses and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU843 | System 800xA DCS | S800 IO | The TU843 MTU can have up to 16 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. The maximum rated voltage is 50 V and maximum rated current is 3 A per channel. The MTU distributes the two ModuleBuses, one to each the I/O module and to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. Four mechanical keys, two for each module, are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Complete installation of I/O modules using 3-wire connections and field power distribution. Up to 16 channels of field signals and process power connections. Connections to two ModuleBuses and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU844 | System 800xA DCS | S800 IO | The TU844 MTU can have up to 8 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. Input signals are connected via individual shunt sticks, TY801. The shunt stick is used to choose between voltage and current input. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the two ModuleBuses, one to each I/O module and to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. Four mechanical keys, two for each I/O module, are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Complete installation of I/O modules using 2-wire connections and field power distribution. Up to 8 channels of field signals and process power connections. Connections to two ModuleBuses and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU845 | System 800xA DCS | S800 IO | The TU845 MTU can have up to 8 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. Input signals are connected via individual shunt sticks, TY801. The shunt stick is used to choose between voltage and current input. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the two ModuleBuses, one to each I/O module and to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU. It has a mechanical latch that locks the MTU to the DIN rail. Four mechanical keys, two for each I/O module, are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Complete installation of I/O modules using 2-wire connections and field power distribution. Up to 8 channels of field signals and process power connections. Connections to two ModuleBuses and I/O modules. Mechanical keying prevents insertion of the wrong I/Omodule. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU850 | System 800xA DCS | S800 IO | The TU850 MTU can have up to 16 I/O channels. The maximum rated voltage is 50 V and maximum rated current is 15mA per I/O channel (digital input) or 25mA per two I/O channels (analog input). The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Complete 2-wire connections for up to 16 channels. Each channel has one current limited sensor/transmitter power outlet terminal and one signal terminal. Current limitation in sensor/transmitter supply is implemented with disconnectable PTC fuse. Process voltage can be connected to 2 individually isolated groups, if the I/O module supports it. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU851 | System 800xA DCS | S800 IO | The TU851 MTU can have up to 16 I/O channels. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Up to 16 isolated channels of field signals. Connections to ModuleBus and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU852 | System 800xA DCS | S800 IO | The TU852 is a 16 channel module termination unit (MTU) for redundant S800 I/O modules and for mounting on a horizontal DIN rail. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. The TU842 MTU can have up to 16 I/O channels and process voltage connections. Each channel has two uncommitted I/O connections. Normally S1-16 (signals) on X1A and U1-16 (power out) on X1B. Each DB25 include terminals for ZP, UP and EM. The MTU distributes the two ModuleBuses to each I/O module and to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU. | Complete installation of I/O modules using 3-wire connections and field power distribution. Up to 16 channels of field signals and process power connections. Connections to two ModuleBuses and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. DIN rail mounting. |  |
| TU854 | System 800xA DCS | S800 IO | The TU854 MTU can have up to 8 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. Input signals are connected via individual shunt sticks, TY801. The shunt stick is used to choose between voltage and current input. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the two ModuleBuses, one to each I/O module and to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. Four mechanical keys, two for each I/O module, are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. | Up to 8 channels of field signals and process power connections. Connections to two ModuleBuses and I/O modules. Mechanical keying prevents insertion of the wrong I/O module. Latching device to DIN rail for grounding. |  |
| TU890 | System 800xA DCS | S800 IO | The TU891 is a compact MTU for the S800 I/O. The MTU is a passive unit used for connection of the field wiring and power supply to the I/O modules. It also contains a part of the ModuleBus. The TU891 MTU has gray terminals for field signals and process voltage connections. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel, but these are primarily constrained to specific values by the design of the I/O modules for their certified application. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. | Intrinsic safety applications - use with AI890, AI893, AI895, AO890, AO895, DI890 and DO890 Compact installations of I/O modules Field signals and process power connections Connections to ModuleBus and I/O modules Mechanical keying prevents insertion of the wrong module Latching device to DIN rail DIN rail mounting |  |
| TU891 | System 800xA DCS | S800 IO | The TU891 MTU has gray terminals for field signals and process voltage connections. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel, but these are primarily constrained to specific values by the design of the I/O modules for their certified application. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. Two mechanical keys are used to configure the MTU for different types of I.S. I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. The keys used on the TU891 are of the opposite gender to those on any other type of MTU and will mate only with IS I/O modules. | Intrinsic safety applications - use with AI890, AI893, AI895, AO890, AO895, DI890 and DO890 Compact installations of I/O modules Field signals and process power connections Connections to ModuleBus and I/O modules Mechanical keying prevents insertion of the wrong module Latching device to DIN rail DIN rail mounting |  |
IO SYSTEMS
+ S800 IO
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|

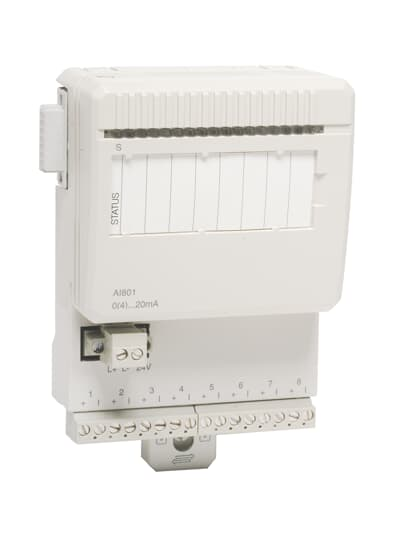

| AI801 | System 800xA DCS | S800 IO | The AI801 Analog Input Module has 8 channels for current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included. | 8 channels for 0...20 mA, 4...20 mA d.c., single ended unipolar inputs 1 group of 8 channels isolated from ground 12 Bit resolution Input shunt resistors protected to 30 V by PTC resistor Analog inputs are short circuit secured to ZP or +24 V The input withstand HART communication Process and power connections via detachable connectors |  |
| AI810 | System 800xA DCS | S800 IO | The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included. The voltage input is able to withstand an over or undervoltage of at least 30 V d.c. Input resistance is 290k ohm. Transmitter supply can be connected to L1+, L1- and/or L2+, L2-. | 8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs 1 group of 8 channels isolated from ground 12 Bit resolution Input shunt resistors protected to 30 V by PTC resistor Analog inputs are short circuit secured to ZP or +24 V The input withstand HART communication. |  |
| AI815 | System 800xA DCS | S800 IO | The AI815 Analog Input Module has 8 channels. The modules can be configured for voltage or current inputs. Current and voltage signals cannot be mixed on the same I/O module. The voltage and current input is able to withstand an overvoltage or undervoltage of at least 11 V d.c. The input resistance for voltage input is greater than 10 M ohm, and the input resistance for current input is 250 ohm. The module distributes the external HART compatible transmitter supply to each channel. This adds a simple connection to distribute the supply to 2-wire or 3-wire transmitters. The transmitter power is supervised and current limited. If an external power supply is used for feeding HART transmitters, the power supply must be HART compatible. | 8 channels for 0...20 mA, 4...20 mA, 0...5 V or 1...5 V d.c., single ended unipolar inputs 1 group of 8 channels isolated from ground 12 Bit resolution Current limited transmitter supply per channel HART pass-through communication |  |
| AI820 | System 800xA DCS | S800 IO | The AI820 Analog Input Module has 4 differential, bipolar current/voltage inputs. Each channel can be either a voltage or current input. The current inputs can withstand an accidental maximum normal mode 30 V d.c. connection. To protect the current input circuit against dangerous input levels, that is, by accidentally connecting a 24 V source, the resistor rating of the 250W current sense resistors is about 5 Watts. This is intended only to temporarily protect one channel at a time. The module distributes the external transmitter supply to each channel. This adds a simple connection (with extended MTUs) to distribute the supply to external 2 wire transmitters. There is no current limiting on the transmitter power terminals. All 4 channels are isolated from the ModuleBus in one group. Power to the input stages is converted from the 24 V on the ModuleBus. | 4 channels for -20...+20 mA, 0...20 mA, 4...20 mA, -10...+10 V, 0...10 V, 2...10 V, -5...+5 V, 0...5 V, 1...5 V d.c. bipolar differential inputs One group of 4 channels isolated from ground 14 Bit resolution plus sign Input shunt resistors protected to 30 V d.c. The input withstand HART communication |  |

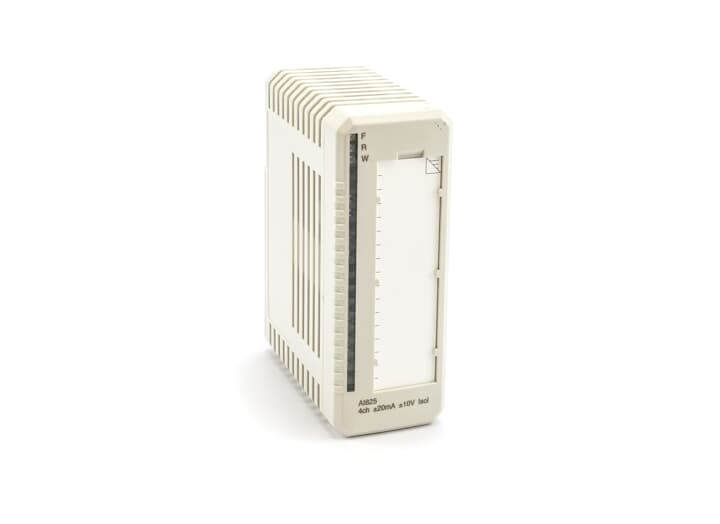

| AI825 | System 800xA DCS | S800 IO | The AI825 Analog Input Module has 4 individually galvanic isolated, bipolar current/voltage inputs. Each channel can be either a voltage or current input. The module has a direct current input that withstand up to 6.3 V and a over voltage protected current input that withstand up to +30 V d.c. The current is limited by a PTC resistor. Power to the input stages is converted from the 24 V on the ModuleBus. | 4 channels individually galvanic isolated inputs for +20 mA, 0...20 mA, 4...20 mA, +10 V, 0...10 V, 2...10 V 14 Bit resolution plus sign Input shunt resistors protected to 30 V d.c. The input withstands HART communication |  |
| AI830A | System 800xA DCS | S800 IO | The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs). With 3-wire connections. All the RTDs must be isolated from ground. The AI830/AI830A can be used with Pt100, Cu10, Ni100, Ni120 or resistive sensors. Linearization and conversion of the temperature to Centigrade or Fahrenheit is performed on the module. Every channel can be individually configured. The MainsFreq parameter is used to set mains frequency filter cycle time. This will give a notch filter at the frequency specified (50 Hz or 60 Hz). | 8 channels for RTD (Pt100, Cu10, Ni100 and Ni120 and resistor) inputs 3-wire connection to RTDs 14 Bit resolution Inputs are monitored for open-circuit, shortcircuit and has a input grounded sensor |  |
| AI835A | System 800xA DCS | S800 IO | The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R, S and T, for AI835A also D, L and U. One of the channels (Channel 8) may be configured for Cold Junction (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device. Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from the application. Channel 8 may be used in the same manner as Ch. 1...7 when no CJ-temperature measurement is needed. | 8 differential input channels for thermocouple/mV. Channel 8 can be designated as the CJ-channel (4-wire Pt100 RTD) Variety of thermocouples with the following characteristics: B, C, E, J, K, N, R, S and T for AI835A also D, L and U 15 Bit resolution (A/D) Inputs are monitored for wire-break open-circuit |  |
| AI843 | System 800xA DCS | S800 IO | The AI843 Thermocouple/mV Input Module provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, L, N, R, S, T and U. A separate Pt100 channel is used for Cold Junction (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...8. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device. Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or a junction temperature set by the application. | 8 differential input channels for thermocouple/mV Single or redundant operation A separate channel is used as CJ-channel (4-wire Pt100 RTD) Variety of thermocouples with the following characteristics: B, C, E, J, K, L, N, R, S, T and U 16 Bit resolution (A/D converter) Inputs are monitored for wire-break open-circuit |  |

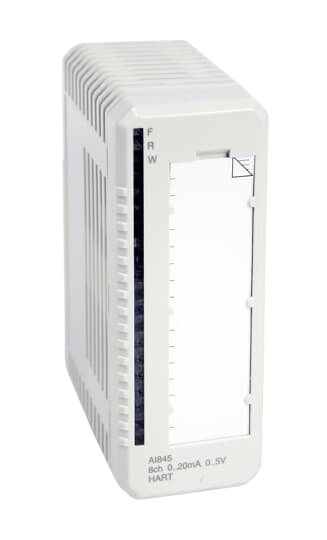

| AI845 | System 800xA DCS | S800 IO | The AI845 Analog Input Module for single or redundant applications. The module has 8 channels. Each channel can be either a voltage or current input when MTU TU844 or TU845 is used, when other MTUs are used all channels become voltage or current inputs. The voltage and current input is able to withstand an overvoltage or undervoltage of at least 11 V d.c. The input resistance for voltage input is greater than 10 M ohm and the input resistance for current input is 250 ohm. The module distributes the external HART compatible transmitter supply to each channel. This adds a simple connection to distribute the supply to 2-wire or 3-wire transmitters. The transmitter power is supervised and current limited. | 8 channels for 0...20 mA, 4...20 mA, 0...5 V or 1...5 V d.c., single ended unipolar inputs Single or redundant operation 1 group of 8 channels isolated from ground 12 Bit resolution Current limited transmitter supply per channel Advanced on-board diagnostics HART pass-through communication |  |
| AI880A | System 800xA DCS | S800 IO | The AI880A High Integrity Analog Input Module is designed for single and redundant configuration. The module has 8 current input channels. The input resistance is 250 ohm. The module distributes the external transmitter supply to each channel. This adds a simple connection to distribute the supply to 2- or 3-wire transmitters. The transmitter power is supervised and current limited. All eight channels are isolated from the ModuleBus in one group. Power to the Module is generated from the 24 V on the ModuleBus. The AI880A complies with the NAMUR recommendation NE43, and supports configurable over- and under range limits. | 8 channels for 0...20 mA, 4...20 mA, single ended unipolar inputs Single or redundant configuration 1 group of 8 channels isolated from ground 12 bit resolution Loop Supervised DI function Configurable alarm limit for field power outputs Configurable over/under range for current inputs Current limited transmitter supply per channel Advanced on-board diagnostics Certified for SIL3 according to IEC 61508 Certified for Category 4 according to EN 954-1 Complies with the NAMUR recommendation NE43, and supports configurable over- and under range limits HART pass-through communication (AI880A) |  |
| AI890 | System 800xA DCS | S800 IO | The AI890 Analog Input Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can be either a current input or power and monitor a two-wire process transmitter. The current input is for externally powered transmitters. The input voltage drop of the current input is typically 3 V, PTC included. The transmitter supply for each channel can provide at least 15 V at a 20 mA loop current to power Ex-certified process transmitters and is limited to 23 mA in overload conditions. All eight channels are isolated from the ModuleBus and power supply in one group. Power to the input stages is converted from the 24 V on the power supply connections. TU890 and TU891 Compact MTU can be used with this module and it enables two wire connections to the process devices without additional terminals. TU890 for Ex applications and TU 891 for non-Ex applications. | 8 channels for 0...20 mA or 4...20 mA, single ended unipolar inputs. 1 group of 8 channels isolated from ground. Power and monitor for Ex certified two-wire transmitters. Non energy-storing analog inputs for externally powered sources. |  |
| AI893 | System 800xA DCS | S800 IO | The AI893 Analog Input Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. The module can be configured for either 2 or 3-wire RTD sensors or for TC sensors. In TC mode, channel 8 is used for Cold Junction (ambient) temperature measurements, thus serving as CJ-channel for channel 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant from the device. The cold junction temperature is measured with a 3-wire Pt 100 sensor. Alternatively, a fixed junction temperature for the module may be set by the user (as parameter). Channel 8 may be used in the same manner as channels 1-7 when no CJ-temperature measurement is needed. TU890 and TU891 Compact MTU can be used with this module and it enables three wire connections to the process devices without additional terminals. TU890 for Ex applications and TU891 for non Ex applications. | 8 differential input channels for 2 or 3-wire RTD and Thermocouple. 1 group of 8 channels isolated from ground. 15 Bit + sign resolution. Ex certified inputs. |  |
| AI895 | System 800xA DCS | S800 IO | The AI895 Analog Input Module can directly interface 2-wire transmitters and with a particular connection it can also interface 4-wire transmitters without losing the HART capability. The AI895 Analog Input Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can power and monitor a two-wire process transmitter and HART communication. The input voltage drop of the current input is typically 3 V, PTC included. The transmitter supply for each channel is able to provide at least 15 V at a 20 mA loop current to power Ex certified process transmitters and is limited to 23 mA in overload conditions. TU890 and TU891 Compact MTU can be used with this module and it enables two wire connections to the process devices without additional terminals. TU890 for Ex applications and TU891 for non Ex applications. | 8 channels for 4...20 mA, single ended unipolar inputs. HART communication. 1 group of 8 channels isolated from ground. Power and monitor for Ex certified two-wire transmitters. Non energy-storing analog inputs for externally powered sources. |  |
| AO801 | System 800xA DCS | S800 IO |  | ||

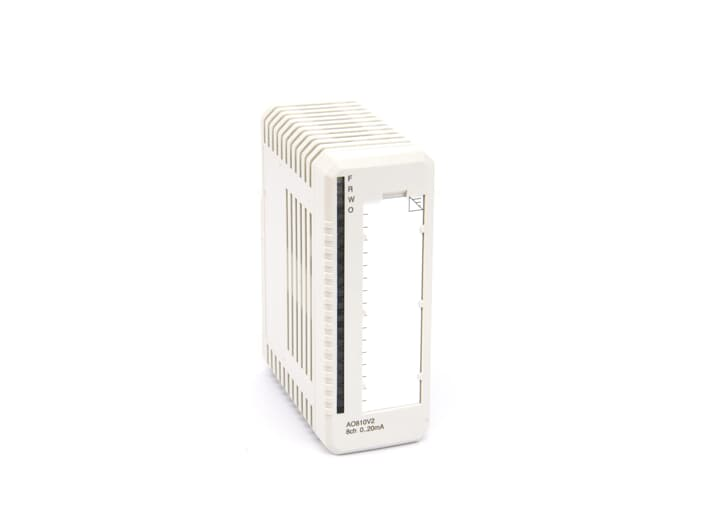

| AO810V2 | System 800xA DCS | S800 IO | The AO801 Analog Output Module has 8 unipolar analog output channels. The module performs selfdiagnostic cyclically. A low internal power supply sets the module in INIT state (no signal from the module). | 8 channels of 0...20 mA, 4...20 mA outputs OSP sets outputs to predetermined state upon error detection Analog Output is to be short circuit secured to ZP or +24 V |  |
| AO815 | System 800xA DCS | S800 IO | The AO815 Analog Output Module has 8 unipolar analog output channels. The module performs self-diagnostic cyclically. Module diagnostics include: External Channel Error is reported (only reported on active channels) if the process power supply that supply voltage to output circuitry is too low, or the output current is less than the output set value and the output set value is greater than 1 mA (open circuit). Internal Channel Error is reported if the output circuit can not give the right current value. Module Error is reported in case of Output Transistor Error, Short Circuit, Checksum Error, Internal Power Supply Error or Watchdog error. The module has HART pass-through functionality. Only point to point communication is supported. The output filter must be enabled on channels used for HART communication. | 8 channels of 4...20 mA 1 group of 8 channels isolated from ground Analog inputs are short circuit secured to ZP or +24 V HART pass-through communication |  |
| AO820 | System 800xA DCS | S800 IO | The AO820 Analog Output Module has 4 bipolar analog output channels. The choice of current or voltage output is configurable for each channel. There are separate sets of terminals for voltage and current outputs, and it is up to the user to wire outputs properly. The only differences between current or voltage channel configuration is in software settings. To supervise the communication to the A/D-converters the output data is read back and verified. The opencircuit diagnostics are read continuously as well. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus. | 4 channels of -20 mA...+20 mA, 0...20 mA, 4...20 mA or -10 V...+10 V, 0...10 V, 2...10 V outputs Individually galvanically isolated channels OSP sets outputs to predetermined state upon error detection. |  |
| AO845A | System 800xA DCS | S800 IO | The AO845/AO845A Analog Output Module for single or redundant applications has 8 unipolar analog output channels. The module performs self-diagnostic cyclically. Module diagnostics include: External Channel Error is reported (only reported on active channels) if the process power supply that supply voltage to output circuitry is too low, or the output current is less than the output set value and the output set value > 1 mA (open circuit). Internal Channel Error is reported if the output circuit can not give the right current value. In a redundant pair the module will be commanded to error state by the ModuleBus master. Module Error is reported in case of Output Transistor Error, Short Circuit, Checksum Error, Internal Power Supply Error, Status Link Error, Watchdog or Wrong OSP behavior. | 8 channels of 4...20 mA For single or redundant applications 1 group of 8 channels isolated from ground Analog inputs are short circuit secured to ZP or +24 V HART pass-through communication |  |
| AO890 | System 800xA DCS | S800 IO | The AO890 Analog Output Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can drive up to 20 mA loop current into a field load such as an Ex certified current-to-pressure converter and is limited to 22 mA in overload conditions. TU890 and TU891 Compact MTU can be used with this module and it enables two wire connections to the process devices without additional terminals. TU890 for Ex applications and TU891 for non Ex applications. | 8 channels of 0...20 mA, 4...20 mA outputs. 1 group of 8 channels isolated from ground. Power to drive Ex certified I/P actuators. |  |
| AO895 | System 800xA DCS | S800 IO | The AO895 Analog Output Module has 8 channels. The module includes Intrinsic Safety protection components and a HART interface on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can drive up to 20 mA loop current into a field load such as an Ex-certified current-to-pressure converter and is limited to 22 mA in overload conditions. All eight channels are isolated from the ModuleBus and power supply in one group. Power to the output stages is converted from the 24 V on the power supply connections. | 8 channels of 4...20 mA outputs. HART communication. 1 group of 8 channels isolated from ground. Power to drive Ex certified I/P actuators. |  |

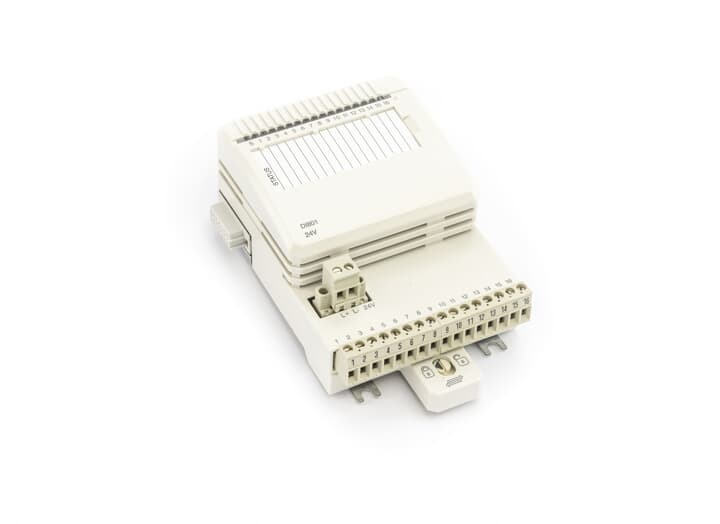

| DI801 | System 800xA DCS | S800 IO | The DI801 is a 16 channel 24 V digital input module for the S800 I/O. This module has 16 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are in one isolated group with sixteen channels and channel number sixteen can be used for voltage supervision input in the group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. | 16 channels for 24 V d.c. inputs with current sinking 1 isolated groups of 16 with voltage supervision Input status indicators Process and power connection via detachable connectors |  |

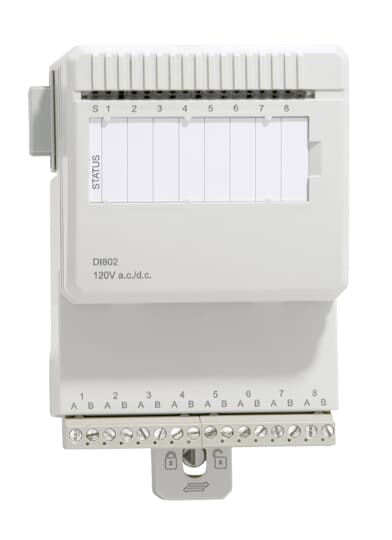

| DI802 | System 800xA DCS | S800 IO | The DI802 is an 8 channel 120 V a.c./d.c. digital input module for the S800 I/O. This module has 8 digital inputs. The a.c. input voltage range is 77 - 130 volt and the input current is 10 mA at 120 V a.c. The d.c. input range is 75 - 145 V and the input current is 2.8 mA at 110 V. The inputs are individually isolated. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. | 8 channels for 120 V a.c./d.c. inputs with current sinking Individually isolated channels Voltage supervision of field input power Input status indicators Signal filtering Process connection via detachable connectors |  |
| DI803 | System 800xA DCS | S800 IO | The DI803 is an 8 channel 230 V a.c./d.c. digital input module for the S800 I/O. This module has 8 digital inputs. The a.c. input voltage range is 164 - 264 volt and the input current is 7.6 mA at 230 V a.c. The d.c. input range is 175 - 275 V and the input current is 1.6 mA at 220 V. The inputs are individually isolated. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. | 8 channels for 230 V a.c./d.c. inputs with current sinking Individually isolated channels Voltage supervision of field input power Input status indicators Signal filtering Process connection via detachable connectors |  |
| DI810 | System 800xA DCS | S800 IO | This module has 16 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus. | 16 channels for 24 V d.c. inputs with current sinking Two isolated groups of 8 with voltage supervision Input status indicators |  |
| DI811 | System 800xA DCS | S800 IO | This module has 16 digital inputs. The input signal voltage range is 36 to 60 volt d.c. and the input current is 4 mA at 48 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus. | 16 channels for 48 V d.c. inputs with current sinking 2 isolated groups of 8 with voltage supervision Input status indicators |  |
| DI814 | System 800xA DCS | S800 IO | The input voltage range is 18 to 30 volt dc and the input current source is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus. | 16 channels for 24 V d.c. inputs with current sourcing 2 Isolated groups of 8 with voltage supervision Input status indicators |  |
| DI818 | System 800xA DCS | S800 IO | This module has 32 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 4.3mA at 24 V. The inputs are divided into two individually isolated groups with 16 channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus. | 32 channels for 24 V d.c. inputs with current sinking Two Isolated groups of 16 channels with voltage supervision Voltage Supervision Signal Filtering |  |
| DI820 | System 800xA DCS | S800 IO | This module has 8 digital inputs. The a.c. input voltage range is 77 - 130 volt and the input current is 10 mA at 120 V a.c. The d.c. input range is 75 - 145 V and the input current is 2.8 mA at 110 V. The inputs are individually isolated. Every input channel consists of current limiting components, EMC protection components, input state indication LED, optical isolation barrier and an analog filter (6 ms). Channel 1 can be used as voltage supervision input for channels 2 - 4, and channel 8 can be used as voltage supervision input for channels 5 - 7. If the voltage connected to channel 1 or 8 disappears, the error inputs are activated and the Warning LED turns on. The error signal can be read from the ModuleBus. | 8 channels for 120 V a.c./d.c. inputs Individually isolated channels Voltage supervision of field input power Input status indicators Signal filtering |  |
| DI821 | System 800xA DCS | S800 IO | The DI821 is a 8 channel, 230 V a.c./d.c, digital input module for the S800 I/O. This module has 8 digital inputs. The ac input voltage range is 164 to 264 V and the input current is 11 mA at 230 V a.c. The d.c. input voltage range is 175 to 275 volt and the input current is 1.6 mA at 220 V d.c. The inputs are individually isolated. Every input channel consists of current limiting components, EMC protection components, input state indication LED, optical isolation barrier and an analog filter (6 ms). Channel 1 can be used as voltage supervision input for channels 2 - 4, and channel 8 can be used as voltage supervision input for channels 5 - 7. If the voltage connected to channel 1 or 8 disappears, the error inputs are activated and the Warning LED turns on. The error signal can be read from the ModuleBus. | 8 channels for 120 V a.c./d.c. inputs Individually isolated channels Voltage supervision of field input power Input status indicators Signal filtering |  |
| DI825 | System 800xA DCS | S800 IO | The DI825 is an 8 channel 125 V d.c. digital input module for the S800 I/O. The input range is 71 - 150 V and the input current is 3.0 mA at 125 V. The inputs are individually isolated. Every input channel consists of current limiting components, EMC protection components, input state indication LED, optical isolation barrier. Channel 1 can be used as voltage supervision input for channels 2 - 4, and channel 8 can be used as voltage supervision input for channels 5 - 7. If the voltage supervision is used and the voltage connected to channel 1 or 8 disappears, the channel error will be set for the channels and the Warning LED turns on. The error signal can be read from the ModuleBus. | 8 channels for 125 V d.c. inputs Individually isolated channels Input status indicators Sequence of event (SOE) functionality Signal filtering |  |
| DI828 | System 800xA DCS | S800 IO | The DI828 is an 16 channel 120 V a.c/d.c. digital input module for the S800 I/O. The module has 16 digital inputs. The AC input voltage range is 77 - 130 V and the input current is 8.5 mA at 120V AC. The DC input voltage range is 75 - 130 V and the input current is 2.4 mA at 120V DC. The inputs are individually isolated. Every input channel consists of current limiting components, EMC protection components, input state indication LED, optical isolation barrier and an analog filter. Channel 1 can be used as voltage supervision input for channels 2 - 8. Channel 16 can be used as voltage supervision input for channels 9 - 15. If the voltage supervision is used and the voltage connected to channel 1 or 16 disappears, the channel error will be set for the channels and the Warning LED turns on. The error signal can be read from the ModuleBus. | 16 channels for 120 V AC/DC inputs Individually isolated channels Input status indicators Signal filtering |  |
| DI830 | System 800xA DCS | S800 IO | The DI830 is a 16 channel 24 V d.c. digital input module for the S800 I/O. The input voltage range is 18 to 30 V d.c. and the input current is 6 mA at 24 V d.c. Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The module cyclically performs self-diagnostics. Module diagnostics include: Process power supply supervision (results in a module warning, if detected). Event queue full. Time synchronization missing. The input signals can be digitally filtered. The filter time can be set in the range 0 to 100 ms. This means that pulses shorter than the filter time are filtered out and pulses longer than specified filter time get through the filter. | 16 channels for 24 V d.c. inputs with current sinking 2 isolated groups of 8 channels with voltage supervision Input status indicators Sequence of event (SOE) functionality Shutter filter |  |
| DI831 | System 800xA DCS | S800 IO | The DI831 is a 16 channel 48 V d.c. digital input module for the S800 I/O. The input voltage range is 36 to 60 V d.c. and the input current is 4 mA at 48 V d.c.). Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The module cyclically performs self-diagnostics. Module diagnostics include: Process power supply supervision (results in a module failure, if detected) Event queue full Time synchronization missing. The input signals can be digitally filtered. The filter time can be set in the range 0 to 100 ms. This means that pulses shorter than the filter time are filtered out and pulses longer than specified filter time get through the filter. | 16 channels for 48 V d.c. inputs with current sinking 2 isolated groups of 8 channels with voltage supervision Input status indicators Sequence of event (SOE) functionality Shutter filter |  |
| DI840 | System 800xA DCS | S800 IO | The DI840 is a 16 channel 24 V d.c. digital input module for single or redundant applications. The input voltage range is 18 to 30 V d.c. and the input current is 7 mA at 24 V d.c. Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The transducer power is supervised and current limited; one output per two input channels. The Sequence of Event function (SOE) can collect events with a resolution of 1 ms. The event queue can contain up to 257 events. The function includes a Shutter filter for filtering out unwanted events. | 16 channels for 24 V d.c. inputs with current sinking 1 group of 16 isolated from ground Input status indicators Advanced on-board diagnostics Sequence of events Redundant or single applications Transducer power distribution |  |
| DI880 | System 800xA DCS | S800 IO | The DI880 is a 16 channel 24 V d.c. digital input module for single or redundant configuration. The input voltage range is 18 to 30 V d.c. and the input current is 7 mA at 24 V d.c. Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. There is one current limited transducer power output per input. The Sequence of Event function (SOE) can collect events with a resolution of 1 ms. The event queue can contain up to 512 x 16 events. The function include a Shutter filter for suppression of unwanted events. The SOE function can report the following status in the event message – Channel value, Queue full, Synchronization jitter, Uncertain time, Shutter filter active and Channel error. | 16 channels for 24 V d.c. inputs with current sinking Redundant or single configuration 1 group of 16 isolated from ground Input status indicators Advanced on-board diagnostics Sequence of events (SOE) Current limited sensor supply per channel Certified for SIL3 according to IEC 61508 Certified for Category 4 according to EN 954-1 |  |
| DI890 | System 800xA DCS | S800 IO | The DI890 Digital Input Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel is galvanically isolated from the power supply, ground, and each other. Intrinsically safe Proximity sensors or volt-free contacts can be powered and monitored by any channel. The Proximity sensor should conform to the NAMUR standard and line faults can be detected without any additional external components. For line faults to be detected when using volt-free contacts, external resistors should be connected in series and in parallel to enable the state of the field circuit to be sensed by the input channel. All eight channels are galvanic isolated from the ModuleBus and power supply individually. Power to the input stages is converted from the 24 V on the power supply connections. Three LEDs indicate module status Fault (Red), Run (Green), and Warning (Yellow). TU890 and TU891 Compact MTU can be used with this module and it enables two wire connections to the process devices without additional terminals. TU890 for Ex applications and TU891 for non Ex applications. | 8 channels with process voltage supervision Output status indicators OSP sets outputs to predetermined state upon error detection Short-circuit protection to ground and 30 V Over-voltage and over-temperature protection Intrinsic Safety support NAMUR inputs G3 compliant |  |
| DO801 | System 800xA DCS | S800 IO | The DO801 is a 16 channel 24 V digital output module for the S800 I/O. The output voltage range is 10 to 30 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The outputs are in one isolated group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. | 16 channels for 24 V d.c. current sourcing outputs 1 isolated groups of 16 channels Output status indicators OSP sets outputs to predetermined state upon communication error Short-circuit protection to ground and 30 V Over-voltage and overtemperature protection Process and power connection via detachable connectors |  |

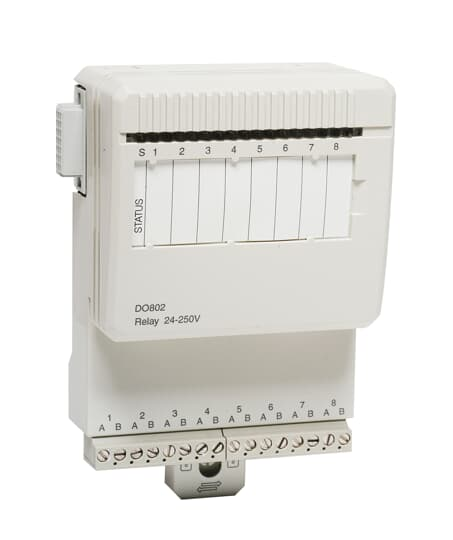

| DO802 | System 800xA DCS | S800 IO | The DO802 is an 8 channel 110 V d.c./250 V a.c. relay (NO) output module for the S800 I/O. The maximum voltage range is 250 V and the maximum continuous output current is 2 A. All outputs are individually isolated. Each output channel consists of optical isolation barrier, output state indication LED, relay driver, relay and EMC protection components. The relay supply voltage supervision, derived from the 24 V distributed on the ModuleBus, gives a channel signal error and a module warning signal if the voltage disappears. The error signal and warning signal can be read through the ModuleBus. This supervision can be enabled/disabled with a parameter. | 8 channels for 110 V d.c. / 250 V a.c. relay Normally Open (NO) outputs 8 isolated channels Process connection via detachable connectors |  |
| DO810 | System 800xA DCS | S800 IO | This module has 16 digital outputs. The output voltage range is 10 to 30 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The outputs are divided into two individually isolated groups with eight output channels and one voltage supervision input in each group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus. The outputs are current limited and protected against over temperature. If the outputs are overloaded the output current will be limited. | 16 channels for 24 V d.c. current sourcing outputs 2 isolated groups of 8 channels with process voltage supervision Output status indicators OSP sets outputs to predetermined state upon error detection Short-circuit protection to ground and 30 V Over-voltage and over-temperature protection |  |
| DO814 | System 800xA DCS | S800 IO | The DO814 is a 16 channel 24 V digital output module with current sinking for the S800 I/O. The output voltage range is 10 to 30 volt and the maximum continuous current sinking is 0.5 A. The outputs are protected against short circuits and over temperature. The outputs are divided into two individually isolated groups with eight output channels and one voltage supervision input in each group. Each output channel consists of a short circuit and over temperature protected low side switch, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus. | 16 channels for 24 V d.c. current sinking outputs 2 isolated groups of 8 channels with process voltage supervision Output status indicators OSP sets outputs to predetermined state upon error detection Short-circuit protection to ground and 30 V Over-voltage and over-temperature protection |  |

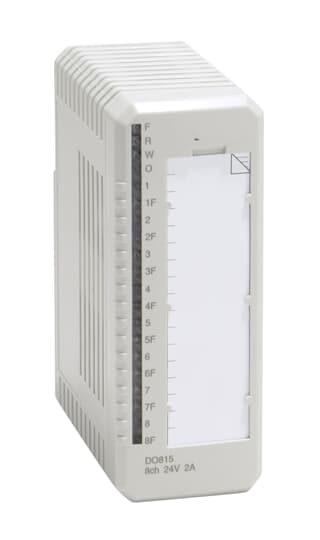

| DO815 | System 800xA DCS | S800 IO | The DO815 is a 8 channel 24 V digital output module for the S800 I/O. The output voltage range is 10 to 30 V and the maximum continuous output current is 2 A @ 24 V. The outputs are protected against short circuits, and over load. The outputs are divided into two individually isolated groups with four output channels in each group. Each output channel consists of a short circuit and over load protected high side driver with open load detection (on active signal), EMC protection components, inductive load suppression, output status indication LEDs and optical isolation barrier. | 8 channels for 24 V d.c. current sourcing outputs 2 isolated groups of 4 channels with under voltage detection OSP sets outputs to predetermined state upon communication error Output status indicators and a channel wise error flag Short-circuit protection to ground and positive supply Over load protection Open load and short-circuit detection Two output fault operation modes: Automatic reset mode and Fault latching mode Inductive load driving capability Filament lamp load up to 10W |  |
| DO818 | System 800xA DCS | S800 IO | The DO818 is a 32 channel 24 V digital output module for the S800 I/O. This module has 16 digital outputs. The output voltage range is 12 to 32 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The outputs are divided into two individually isolated groups with 16 output channels and one voltage supervision input in each group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus. | 32 channels for 24 V d.c. 2 isolated groups (RIV50V) with 16 channels and one process voltage supervision input in each group The process voltage range is 12-32V dc (nominally 24V dc) and the maximum continuous output current is 0.5A per channel |  |
| DO820 | System 800xA DCS | S800 IO | The DO820 is an 8 channel 230 V a.c./d.c. relay (NO) output module for the S800 I/O. The maximum output voltage is 250 V a.c./d.c. and the maximum continuous output current is 3 A. All outputs are individually isolated. Each output channel consists of optical isolation barrier, output state indication LED, relay driver, relay and EMC protection components. The relay supply voltage supervision, derived from the 24 V distributed on the ModuleBus, gives an error signal if the voltage disappears, and the Warning LED turns on. The error signal can be read through the ModuleBus. This supervision can be enabled/disabled with a parameter. | 8 channels for 230 V a.c./d.c. relay Normal Open (NO) outputs 8 isolated channels Output status indicators OSP sets outputs to predetermined state upon error detection |  |
| DO821 | System 800xA DCS | S800 IO | The DO821 is an 8 channel 230 V a.c./d.c. relay (NC) output module for the S800 I/O. The maximum output voltage is 250 V a.c. and the maximum continuous output current is 3 A. All outputs are individually isolated. Each output channel consists of optical isolation barrier, output state indication LED, relay driver, relay and EMC protection components. The relay supply voltage supervision, derived from the 24 V distributed on the ModuleBus, gives an error signal if the voltage disappears, and the Warning LED turns on. The error signal can be read via the ModuleBus. This supervision can be enabled/disabled with a parameter. | 8 channels for 230 V a.c./d.c. relay Normal Closed (NC) outputs 8 isolated channels Output status indicators OSP sets outputs to predetermined state upon error detection |  |
| DO828 | System 800xA DCS | S800 IO | The DO828 is an 16 channel 125V d.c. / 250V a.c. relay output module for the S800 I/O. The maximum output voltage is 125V d.c. / 250V a.c. and the maximum continuous output current is 2A. All outputs are individually isolated. Each output channel consists of optical isolation barrier, output state indication LED, relay driver, relay and EMC protection components. The relay supply voltage supervision, derived from the 12 V distributed on the ModuleBus, gives an error signal if the voltage disappears, and the Warning LED turns on. The error signal can be read through the ModuleBus. This supervision can be enabled/disabled with a parameter. | 16 channels for 125V d.c. / 250V a.c. relay outputs 16 isolated channels Output status indicators OSP sets outputs to predetermined state uponerror detection |  |
| DO840 | System 800xA DCS | S800 IO | This module has 16 digital outputs. The maximum continuous output current per channel is 0.5 A. The outputs are current limited and protected against over temperature. The outputs are divided into two groups with eight output channels and one voltage supervision input in each group. Each output channel consists of a current limited and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. | 16 channels for 24 V d.c. current sourcing outputs 2 isolated groups of 8 channels with process voltage supervision Advanced on-board diagnostics Output status indicators OSP sets outputs to predetermined state upon error detection Redundant or single applications Current limited and over-temperature protection |  |
| DO880 | System 800xA DCS | S800 IO | The DO880 is a 16 channel 24 V digital output module for single or redundant application. The maximum continuous output current per channel is 0.5 A. The outputs are current limited and protected against over temperature. Each output channel consists of a current limited and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and an isolation barrier to the Modulebus. | 16 channels for 24 V d.c. current sourcing outputs in one isolated group Redundant or single configuration Loop monitoring, supervision of short and open load with configurable limits (see table Table 97). Diagnostic of output switches without pulsing on outputs Advanced on-board diagnostics Output status indicators (activated/error) Degraded mode for normally energized channels (supported from DO880 PR:G) Current limitation at short circuit and over-temperature protection of switches Fault tolerance of 1 (as defined in IEC 61508) for output drivers. For ND (Normally De-energized) systems, outputs can still be controlled with error on output drivers Certified for SIL3 according to IEC 61508 Certified for Category 4 according to EN 954-1. |  |
| DO890 | System 800xA DCS | S800 IO | The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can drive a nominal current of 40 mA into a 300-ohm field load such as an Ex-certified solenoid valve, alarm sounder unit, or indicator lamp. Open and short circuit detection can be configured for each channel. All four channels are galvanic isolated between channels and from the ModuleBus and power supply. Power to the output stages is converted from the 24 V on the power supply connections. TU890 and TU891 Compact MTU can be used with this module and it enables two wire connections to the process devices without additional terminals. TU890 for Ex applications and TU891 for non Ex applications. | 4 channels for 11 V, 40 mA digital outputs. All channels fully isolated. Power to drive Ex certified solenoid valves and alarm sounders. Output and fault status indicators for each channel. |  |

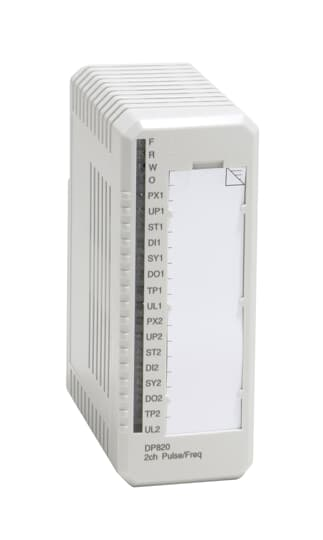

| DP820 | System 800xA DCS | S800 IO | DP820 is an two-channel pulse counting module for incremental pulse transmitters up to 1.5 MHz. Each channel contains counters and registers for position/length and speed/frequency measurement. Each channel provides three balanced inputs for connection of a pulse transmitter, one digital input and one digital output. Pulse transmitters with RS422, +5 V, +12 V, +24 V and 13 mA interfaces can be connected to DP820. Use DP820 with Module Termination Units TU810V1, TU812V1, TU814V1, TU830V1, TU833. | Two channels Interface for RS422, 5 V, 12 V, 24 V and 13 mA transducer signal levels Simultaneous pulse count and frequency measurement Pulse count (length/position) by accumulation in a bidirectional 29 bit counter Frequency (speed) measurement 0.25 Hz - 1.5 MHz |  |
| DP840 | System 800xA DCS | S800 IO | The DP840 module consists of 8 identical independent channels. Each channel can be used for pulse count or frequency (speed) measurement, maximum 20 kHz. The inputs can also be read as DI signals. Each channel has a configurable input filter. The module perform self-diagnostics cyclically. With advanced diagnostics, for single or redundant applications. Interface for NAMUR, 12 V and 24 V. The input can be read as digital input signals. Use DP840 with Module Termination Units TU810V1, TU812V1, TU814V1, TU830V1, TU833. | 8 channels The modules can be used in both single and redundant applications Interface for NAMUR, 12 V and 24 V transducer signal levels Each channel can be configured for pulse count or frequency measurement The inputs can also be read as DI signals Pulse count by accumulation in a 16 bit counter Frequency (speed) measurement 0.5 Hz - 20 kHz Advanced on-board diagnostics |  |
| TB805 (Accessories) | System 800xA DCS | S800 IO | The TB805 ModuleBus Cable Adaptor is used together with TB806 and TK801V0xx to extend the ModuleBus. Using this extension I/O modules on the same electrical ModuleBus can be mounted on different DIN rails. | - | |
| TB806 (Accessories) | System 800xA DCS | S800 IO | The TB806 ModuleBus Cable Adaptor is used together with TB805 and TK801V0xx to extend the ModuleBus. Using this extension I/O modules on the same electrical ModuleBus can be mounted on different DIN rails. TB806 can also be used together with TB842 to provide an optical extension of the ModuleBus. | - | |
| TB807 (Accessories) | System 800xA DCS | S800 IO | The TB807 is a passive unit used for termination of the Modulebus. | - | |
| TB845 (Accessories) | System 800xA DCS | S800 IO | The TB845 redundant ModuleBus Cable Adaptor is used together with TB846 and two TK801V0xx to extend the ModuleBus. Using this extension I/O modules on the same electrical ModuleBus can be mounted on different DIN rails. | - | |
| TB846 (Accessories) | System 800xA DCS | S800 IO | The TB846 redundant ModuleBus Cable Adaptor is used together with TB845 and two TK801V0xx to extend the ModuleBus. Using this extension I/O modules on the same electrical ModuleBus can be mounted on different DIN rails. TB846 can also be used together with TB842 to provide an optical extension of the ModuleBus. | - | |
| TK801V003 (Accessories) | System 800xA DCS | S800 IO | The TK801V003 ModuleBus Extension Cable is a 0.3 m long cable that is used together with TB805/TB845 and TB806/TB846 to extend the ModuleBus. Using this extension I/O modules on the same electrical ModuleBus can be mounted on different DIN rails. | - | |
| TK801V006 (Accessories) | System 800xA DCS | S800 IO | The TK801V006 ModuleBus Extension Cable is a 0.6 m long cable that is used together with TB805/TB845 and TB806/TB846 to extend the ModuleBus. Using this extension I/O modules on the same electrical ModuleBus can be mounted on different DIN rails. | - | |
| TK801V012 (Accessories) | System 800xA DCS | S800 IO | The TK801V012 ModuleBus Extension Cable is a 1.2 m long cable that is used together with TB805/TB845 and TB806/TB846 to extend the ModuleBus. Using this extension I/O modules on the same electrical ModuleBus can be mounted on different DIN rails. | - | |
| TK811V015 (Accessories) | System 800xA DCS | S800 IO | The TK811V015 is a 1.5 m long, duplex Plastic Optical Fiber for optical ModuleBus connection. | - | |
| TK811V050 (Accessories) | System 800xA DCS | S800 IO | The TK811V050 is a 5 m long, duplex Plastic Optical Fiber for optical ModuleBus connection. | - | |
| TK811V150 (Accessories) | System 800xA DCS | S800 IO | The TK811V150 is a 15 m long, duplex Plastic Optical Fiber for optical ModuleBus connection. | - | |
| TK812V015 (Accessories) | System 800xA DCS | S800 IO | The TK812V015 is a 1.5 m long, simplex Plastic Optical Fiber for optical ModuleBus connection. | - | |
| TK812V050 (Accessories) | System 800xA DCS | S800 IO | The TK812V050 is a 5 m long, simplex Plastic Optical Fiber for optical ModuleBus connection. | - | |
| TK812V150 (Accessories) | System 800xA DCS | S800 IO | The TK812V150 is a 15 m long, Simplex Plastic Optical Fiber for Optical ModuleBus connection. | - | |
| TL810K01 (Accessories) | System 800xA DCS | S800 IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. Empty slot protector for a Fieldbus Communication Interface slot on the Ethernet FCI Module Termination Unit. 10 pieces per package. | Empty slot protector for a Fieldbus Communication Interface slot on the Ethernet FCI Module Termination Unit | - |
| TL811K01 (Accessories) | System 800xA DCS | S800 IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. Empty slot protector for a Ethernet Adapter slot on the Ethernet FCI Module Termination Unit. 10 pieces per package. | Empty slot protector for a Ethernet Adapter slot on the Ethernet FCI Module Termination Unit | - |
| TY801K01 (Accessories) | System 800xA DCS | S800 IO | 8 pcs Shunt Stick TY801. 125 + 125 ohms shunt. Used for AI845 and AI880A on TU834, TU844, TU845, TU854. | - | |
| TY804K01 (Accessories) | System 800xA DCS | S800 IO | 8 pcs Shunt Stick TY804. 1000 Ohm shunt. Used for DP840 on TU844, TU845, TU854 | - | |
| TY805K01 (Accessories) | System 800xA DCS | S800 IO | 8 pcs Shunt Stick TY805. 125 + 125 ohms shunt with current limitation. Used for AI845 and AI880A on TU834, TU844, TU845, TU854. | - | |
| TY820K01 (Accessories) | System 800xA DCS | S800 IO | 10 pcs Temperature Sensor TY820. TY820 is a temperature sensor with a PT 100 element. Can be used with AI835/AI835A and AI843 to measure cold junction Temperature. | - |
+ S900 IO
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|
| AI910B (AI4-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AI910B Analog Input (AI4-B), input and power supply for 4...20 mA loop powered 2-wire transmitters. | ATEX Certification for Zone 2 Redundancy (Power and Communication) Hot Configuration in Run Hot Swap functionality Extended Diagnostic Excellent configuration and diagnostics via FDT/DTM G3 – coating for all components Simplified maintenance with auto-diagnostics Power supply for 4...20 mA loop powered 2-wire transmitters Short and break detection Electrical isolation between input / bus and input / power Common return for all inputs 4 channels | .png) |
| AI910N (AI4) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. AI910N Analog Input (AI4), input and power supply for 4...20 mA loop powered 2-wire transmitters. | Redundancy (Power and Communication) Hot Configuration in Run Hot Swap functionality Extended Diagnostic Excellent configuration and diagnostics via FDT/DTM G3 – coating for all components Simplified maintenance with auto-diagnostics Power supply for 4...20 mA loop powered 2-wire transmitters Short and break detection Electrical isolation between input / bus and input / power Common return for all inputs 4 channels | .png) |
| AI910S (AI4-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AI910S Analog Input (AI4-Ex), input and power supply for 4...20 mA loop powered 2-wire transmitters. | ATEX Certification for installation in Zone 1 Redundancy (Power and Communication) Hot Configuration in Run Hot Swap functionality Extended Diagnostic Excellent configuration and diagnostics via FDT/DTM G3 – coating for all components Simplified maintenance with auto-diagnostics Power supply for 4...20 mA loop powered 2-wire transmitters Short and break detection Electrical isolation between input / bus and input / power Common return for all inputs 4 channels | .png) |
| AI930B (AI4H-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AI930B Analog Input (AI4H-B), input and power supply for 4...20 mA loop powered 2-wire transmitters. | ATEX Certification for installation in Zone 2 - Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Power supply for 4...20 mA loop powered 2-wire transmitters - Short and break detection - Electrical isolation between input / bus and input / power - Common return for all inputs 4 channels - Transmission of HART frames via the fieldbus - Cyclic HART variables | .png) |
| AI930N (AI4H) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. AI930N Analog Input (AI4H), input and power supply for 4...20 mA loop powered 2-wire transmitters. | Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics -Power supply for 4...20 mA loop powered 2-wire transmitters -Short and break detection -Electrical isolation between input / bus and input / power -Common return for all inputs -4 channels -Transmission of HART frames via the fieldbus -Cyclic HART variables | .png) |
| AI930S (AI4H-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AI930S Analog Input (AI4H-Ex), input and power supply for 4...20 mA loop powered 2-wire transmitters. | ATEX Certification for Zone 1 - Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Power supply for 4...20 mA loop powered 2-wire transmitters -Short and break detection -Electrical isolation between input / bus and input / power -Common return for all inputs -4 channels -Transmission of HART frames via the fieldbus -Cyclic HART variables | .png) |
| AI931B (AI4H-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AI931B Analog Input (AI4H-B), passive inputs for 0/4...20 mA. | ATEX Certification for installation in Zone 2 - Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Passive inputs for 0/4...20 mA - Short and break detection - Electrical isolation between input / bus and input / power - Common return for all inputs - 4 channels - Transmission of HART frames via the fieldbus - Cyclic HART variables | .png) |
| AI931N (AI4H) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. AI931N Analog Input (AI4H), passive inputs for 0/4...20 mA. | Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Passive inputs for 0/4...20 mA - Short and break detection - Electrical isolation between input / bus and input / power - Common return for all inputs - 4 channels - Transmission of HART frames via the fieldbus - Cyclic HART variables | .png) |
| AI931S (AI4H-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AI931S Analog Input (AI4H-Ex), passive inputs for 0/4...20 mA. | ATEX Certification for installation in Zone 1 - Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Passive inputs for 0/4...20 mA - Short and break detection - Electrical isolation between input / bus and input / power - Common return for all inputs - 4 channels - Transmission of HART frames via the fieldbus - Cyclic HART variables | .png) |
| AI950B (TI4-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AI950B Temperature Input (TI4-B), supporting Pt100, Pt1000and Ni100 in 2-/3-/4- technology. Thermocouples B, E, J, K, L, N, R, S, T, U, mV. Isolated inputs channel by channel. | ATEX Certification for Zone 2 - Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Pt 100, Pt 1000, Ni 100, 0...3kOhms in 2/3/4 wire technique - Thermocouple Type B, E, J, K, L, N, R, S, T, U, mV - Internal or external cold junction compensation - Short and break detection - Electrical isolation between input / bus and input / power - Electrical isolation channel to channel - 4 channels | .png) |
| AI950N (TI4) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. AI950N Temperature Input (TI4), supporting Pt100, Pt1000 and Ni100 in 2-/3-/4-technology. Thermocouples B, E, J, K, L, N, R, S, T, U, mV. Isolated inputs channel by channel. | Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Pt 100, Pt 1000, Ni 100, 0...3kOhms in 2/3/4 wire technique - Thermocouple Type B, E, J, K, L, N, R, S, T, U, mV - Internal or external cold junction compensation - Short and break detection - Electrical isolation between input / bus and input / power - Electrical isolation channel to channel - 4 channels | .png) |
| AI950S (TI4-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AI950S Temperature Input (TI4-Ex), supporting Pt100, Pt1000 and Ni100 in 2-/3-/4-technology. Thermocouples type B, E, J, K, L, N, R, S, T, U, mV. Isolated inputs channel by channel. | ATEX Certification for installation in Zone 1 - Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Pt 100, Pt 1000, Ni 100, 0...3kOhms in 2/3/4 wire technique - Thermocouple Type B, E, J, K, L, N, R, S, T, U, mV - Internal or external cold junction compensation - Short and break detection - Electrical isolation between input / bus and input / power - Electrical isolation channel to channel - 4 channels | .png) |
| AO910B (AO4-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AO910B Analog Output (AO4-B), output signal 0/4...20 mA for actuators. | ATEX Certification for installation in Zone 2 - Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Output signal 0/4...20 mA for actuators - Short and break detection - Electrical isolation between output / bus and output / power - Output with common ground - 4 channels | .png) |
| AO910N (AO4) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. AO910N Analog Output (AO4), output signal 0/4...20 mA for actuators. | Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Output signal 0/4...20 mA for actuators - Short and break detection - Electrical isolation between output / bus and output / power - Output with common ground - 4 channels | .png) |
| AO910S (AO4-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AO910S Analog Output (AO4-Ex), output signal 0/4...20 mA for actuators. | ATEX Certification for installation in Zone 1 - Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Output signal 0/4...20 mA for actuators - Short and break detection - Electrical isolation between output / bus and output / power - Output with common ground - 4 channels | .png) |

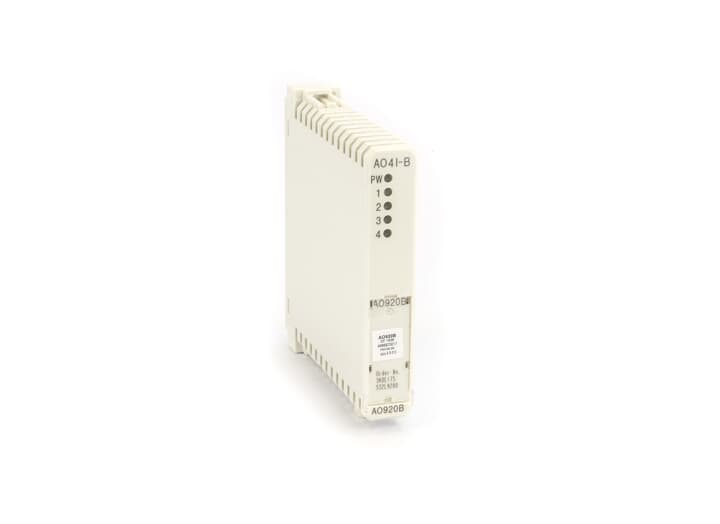

| AO920B (AO4I-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AO920B Analog Output (AO4I-B), output signal 0/4...20 mA for actuators. | ATEX Certification for installation in Zone 2 - Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Output signal 0/4...20 mA for actuators - Short and break detection - Electrical isolation between output / bus and output / power - Electrical isolation channel to channel - 4 channels | .png) |
| AO920N (AO4I) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. AO920N Analog Output (AO4I), output signal 0/4...20 mA for actuators. | Redundancy (Power and Communication) - Hot Configuration in Run - Hot Swap functionallity - Extended Diagnostic - Excellent configuration and diagnostics via FDT/DTM - G3 – coating for all components - Simplified maintenance with auto-diagnostics - Output signal 0/4...20 mA for actuators - Short and break detection - Electrical isolation between output / bus and output / power - Electrical isolation channel to channel - 4 channels | .png) |
| AO920S (AO4I-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AO920S Analog Output (AO4I-Ex), output signal 0/4...20 mA for actuators. | ATEX Certification for installation in Zone 1 Redundancy (Power and Communication) Hot Configuration in Run Hot Swap functionallity Extended Diagnostic Excellent configuration and diagnostics via FDT/DTM G3 – coating for all components Simplified maintenance with auto-diagnostics Output signal 0/4...20 mA for actuators Short and break detection Electrical isolation between output / bus and output / power Electrical isolation channel to channel 4 channels | .png) |
| AO930B (AO4H-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AO930B Analog Output (AO4H-B), output signal 0/4...20 mA for actuators. | ATEX Certification for installation in Zone 2 Redundancy (Power and Communication) Hot Configuration in Run Hot Swap functionallity Extended Diagnostic Excellent configuration and diagnostics via FDT/DTM G3 – coating for all components Simplified maintenance with auto-diagnostics Output signal 0/4...20 mA for actuators Short and break detection Electrical isolation between output / bus and output / power Output with common ground 4 channels Transmission of HART frames via the fieldbus Cyclic HART variables | .png) |
| AO930N (AO4H) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. AO930N Analog Output (AO4H), output signal 0/4...20 mA for actuators. | Redundancy (Power and Communication) Hot Configuration in Run Hot Swap functionallity Extended Diagnostic Excellent configuration and diagnostics via FDT/DTM G3 – coating for all components Simplified maintenance with auto-diagnostics Output signal 0/4...20 mA for actuators Short and break detection Electrical isolation between output / bus and output / power Output with common ground 4 channels Transmission of HART frames via the fieldbus Cyclic HART variables | .png) |
| AO930S (AO4H-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. AO930S Analog Output (AO4H-Ex), output signal 0/4...20 mA for actuators. | ATEX Certification for installation in Zone 1 Redundancy (Power and Communication) Hot Configuration in Run Hot Swap functionallity Extended Diagnostic Excellent configuration and diagnostics via FDT/DTM G3 – coating for all components Simplified maintenance with auto-diagnostics Output signal 0/4...20 mA for actuators Short and break detection Electrical isolation between output / bus and output / power Output with common ground 4 channels Transmission of HART frames via the fieldbus Cyclic HART variables | .png) |
| CI920AB (CIPBA-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. CI920AB Communication Interface V2.1 (CIPBA-B), for Fieldbus protocol PROFIBUS DP-V1 (IEC 61158). Use only CI920AB with the same firmware for redundancy for PROFIBUS DP-V1 (observe Release Notes). | ATEX Certification for installation in Zone 2 • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Fieldbus protocol PROFIBUS DP-V1 (IEC 61158) • Coupling of the internal CAN bus to external PROFIBUS DP-V1 (IEC 61158) • HART over PROFIBUS DP-V1 • Line or media redundancy via two coupling modules • Electrical isolation between fieldbus, power • Diagnosis, configuration and parameterization via PROFIBUS | .png) |
| CI920AN (CIPBA) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. CI920AN Communication Interface V 2.1 (CIPBA), for Fieldbus protocol PROFIBUS DP-V1 (IEC 61158). Use only CI920AN with the same firmware for redundancy for PROFIBUS DP-V1 (observe Release Notes). | Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Fieldbus protocol PROFIBUS DP-V1 (IEC 61158) • Coupling of the internal CAN bus to external PROFIBUS • HART over PROFIBUS DP-V1 • Line or media redundancy via two coupling modules • Electrical isolation between fieldbus, power • Diagnosis, configuration and parameterization via PROFIBUS | .png) |
| CI920AS (CIPBA-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. CI920AS Communication Interface V 2.1 (CIPBA-Ex), for Fieldbus protocol PROFIBUS DP-V1 (IEC 61158). Use only CI920AS with the same firmware for redundancy for PROFIBUS DP-V1 (observe Release Notes). | ATEX Certification for installation in Zone 1 • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Fieldbus protocol PROFIBUS DP-V1 (IEC 61158) • Coupling of the internal CAN bus to external PROFIBUS DP-V1 (IEC 61158) • HART over PROFIBUS DP-V1 • Line or media redundancy via two coupling modules • Electrical isolation between fieldbus, power • Diagnosis, configuration and parameterization via PROFIBUS | .png) |
| DO910B (D04-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. DO910B Digital Output (DO4-B), output for intrinsically safe valves or alarms. | ATEX Certification for installation in Zone 2 • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Output for intrinsically safe valves or alarms • Integrated driving power • Short and break detection • Electrical isolation between output / bus and output / power • Electrical isolation channel to channel • 4 channels | .png) |
| DO910S (DO4-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. DO910S (DO4-Ex), output for Intrinsically safe valves or alarms. | • ATEX Certification for installation in Zone 1 • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Output for intrinsically safe valves or alarms • Integrated driving power • Short and break detection • Electrical isolation between output / bus and output / power • Electrical isolation channel to channel • 4 channels | .png) |
| DO930N (RO6) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. DO930N Relay Output (RO6) With 4 normally-open contacts and 2 changeover contacts. DO930N Digital Relay Output (RO6), relay output for higher switching power. | Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Relay output for higher switching power • Output configurable as NO or NC contact • Electrical isolation between output / bus and output / power • Electrical isolation channel to channel • Configurable as 4 x changeover contact • Configurable as 6 x NO contact | .png) |
| DP910B (FI2-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. DP910B Frequency Input (FI2-B), frequency input for dry contacts or proximity switches. | ATEX Certification for installation in Zone 2 • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Frequency input for dry contacts or proximity switches • Short and break detection • Electrical isolation between input / bus and input / power • Frequency measurement or counting applications • 2 Function blocks • Reset via fieldbus or control input • Status outputs / Direction recognition | .png) |
| DP910N (FI2) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. DP910N Frequency Input (FI2), frequency input for dry contacts or proximity switches. | Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Frequency input for dry contacts or proximity switches • Short and break detection • Electrical isolation between input / bus and input / power • Frequency measurement or counting applications • 2 Function blocks • Reset via fieldbus or control input • Status outputs / Direction recognition | .png) |
| DP910S (FI2-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. DP910S Frequency Input (FI2-Ex), frequency input for dry contacts or proximity switches. | • ATEX Certification for installation in Zone 1 • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Frequency input for dry contacts or proximity switches • Short and break detection • Electrical isolation between input / bus and input / power • Frequency measurement or counting applications • 2 Function blocks • Reset via fieldbus or control input • Status outputs / Direction recognition | .png) |
| DX910B (DIO8-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. DX910B Digital Input or Output (DI08-B), input for dry contacts or proximity switches, output for low power intrinsically safe valves. | • ATEX Certification for installation in Zone 2 • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Input for dry contacts or proximity switches (NAMUR) • Output for low power intrinsically safe valves • Short and break detection • Electrical isolation between input / bus and input / power • Common return for all inputs / outputs • Configurable as a mixture of inputs and outputs • 8 I/O channels | .png) |
| DX910N (DIO8) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. DX910N Digital Input or Output (DI08), input for dry contacts or proximity switches, output for low power intrinsically safe valves. | • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Input for dry contacts or proximity switches (NAMUR) • Output for low power intrinsically safe valves • Short and break detection • Electrical isolation between input / bus and input / power • Common return for all inputs / outputs • Configurable as a mixture of inputs and outputs • 8 I/O channels | .png) |

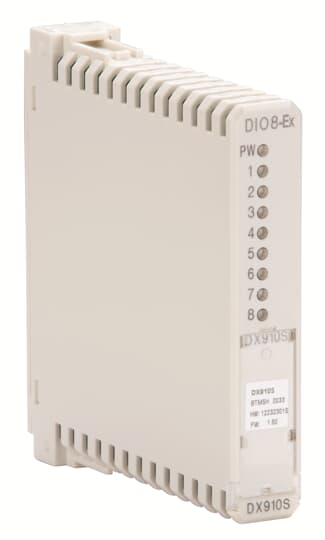

| DX910S (DIO8-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. DX910S Digital Input or Output (DI08-Ex), input for dry contacts or proximity switches, output for low power intrinsically safe valves. | • ATEX Certification for installation in Zone 1 • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Input for dry contacts or proximity switches (NAMUR) • Output for low power intrinsically safe valves • Short and break detection • Electrical isolation between input / bus and input / power • Common return for all inputs / outputs • Configurable as a mixture of inputs and outputs • 8 I/O channels | .png) |
| IP920 | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. IP920 Module housing (Cover for empty slots in TU921S, B and N). | • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Hot Swap functionallity • Cover for empty slots in TU921S, B and N |  |
| SA920B Power Supply | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. SA920B Power Supply for 24 V DC, for redundant termination unit TU921B (TU16R-B) in S900 I/O. Do not mix SA910B with SA920B for redundancy (observe Release Notes). | • ATEX Certification for installation in Zone 2 • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Powering of communication interfaces and I/O modules • Hot swap capability in Zone 2 • Redundant powering • Alarm in case of power failure (with redundancy) • Switching On by tighten the 4 switch-on interlock screws |  |
| SA920N Power Supply | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. SA920N Power Supply for 24V DC, for redundant termination unit TU921N (TU16R) in S900 I/O. Do not mix SA910N with SA920N for redundancy (observe Release Notes). | • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Powering of communication interfaces and I/O modules • Hot swap capability in safe area • Redundant powering • Alarm in case of power failure (with redundancy) |  |
| SA920S Power Supply | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. SA920S Power Supply for 24 V DC, for redundant termination unit TU921S (TU16R-Ex) in S900 I/O. Do not mix SA910S with SA920S for redundancy (observe Release Notes). | • ATEX Certification for installation in Zone 1 • Redundancy (Power and Communication) • Hot Configuration in Run • Hot Swap functionality • Extended Diagnostic • Excellent configuration and diagnostics via FDT/DTM • G3-coating for all components • Simplified maintenance with auto-diagnostics • Powering of communication interfaces and I/O modules • Hot swap capability in Zone 1 • Redundant powering • Alarm in case of power failure (with redundancy) • Switching On by tighten the 4 switch-on interlock screws |  |
| TU921B RTU (TU16R-B) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type B. For installation in hazardous area Zone 2. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. TU921B Redundant Termination Unit (TU16R-B), for 16 I/O-modules, redundant communication and power (Delivery includes CD910). | ATEX Certification for installation in Zone 2 Redundancy (Power and Communication) Hot Configuration in Run Hot Swap functionallity Extended Diagnostic Excellent configuration and diagnostics via FDT/DTM G3 – coating for all components Simplified maintenance with auto-diagnostics Mounting in safe area or Zone 2 possible Termination unit for up to 16 I/O modules Prepared for redundant system power and communication Up to 4 terminals per channel Pre-selection of fieldbus address Prepared for certified field housing Mounting in Zone 2 or safe area possible | .png) |
| TU921N RTU (TU16R) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type N. For installation in safe (= non-hazardous) area. TU921N Redundant Termination Unit (TU16R), for 16 I/O-modules, redundant communication and power (Delivery includes CD910). | For installation in safe areas (non-hazardous) Redundancy (Power and Communication) Hot Configuration in Run Hot Swap functionallity Extended Diagnostic Excellent configuration and diagnostics via FDT/DTM G3 – coating for all components Simplified maintenance with auto-diagnostics Mounting in safe area possible Termination unit for up to 16 I/O modules Prepared for redundant system power and communication Up to 4 terminals per channel Pre-selection of fieldbus address Prepared for certified field housing Mounting only in safe area possible | .png) |
| TU921S RTU (TU16R-Ex) | System 800xA DCS | S900 IO | The remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous area depending on the selected system variant. S900 I/O communicates with the control system level using the PROFIBUS DP standard. The I/O system can be installed directly in the field, therefore the costs for marshalling and wiring are reduced. The system is sturdy, error-tolerant and easy to service. Integrated disconnection mechanisms allow replacement during operation, meaning that there is no need to interrupt the primary voltage in order to exchange the power supply units. S900 I/O type S. For installation in hazardous area Zone 1. For connecting intrinsically safe field devices installed in Zone 2, Zone 1 or Zone 0. TU921S Redundant Termination Unit (TU16R-Ex), for 16 I/O-modules, redundant communication and power (Delivery includes CD910). | ATEX Certification for installation in Zone 1 Redundancy (Power and Communication) Hot Configuration in Run Hot Swap functionallity Extended Diagnostic Excellent configuration and diagnostics via FDT/DTM G3 – coating for all components Simplified maintenance with auto-diagnostics Termination unit for up to 16 I/O modules Prepared for redundant system power and communication Up to 4 terminals per channel Preselection of fieldbus address Prepared for certified field housing Mounting in Zone 1, Zone 2 or safe area possible | .png) |
+ Select IO
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|
| AIS810 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget.\r A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The AIS810 is an Analog Input Signal Conditioning Module (16-bit) supporting 2/4-wire devices and HART communications. | Analog input for 2-wire or external powered 4-wire field devices Signal range: 4...20 mA and 0...20 mA Can be used in hazardous areas Transmitter power current limited to 30 mA 16 bit A/D converter resolution Channel to channel galvanic isolation Hardware filter, rise time 1ms Software filter configurable through parameters Protected against wrong wiring Configurable software filter Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Device malfunction low, under range, over range and device malfunction high detection -Internal power supervision Support of HART field devices (up to HART application layer revision7): -HART Pass-Through -Cyclic read of up to two HART Device Variables -HART Device Validation Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module. |  |
| AIS815 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The AIS815 is an Analog Input Signal Conditioning Module (16-bit) supporting 2/3/4-wire devices (1.2 A) and HART communication. | Analog input for 2-wire, 3-wire or 4-wire field devices, powered by AIS815 Signal range: 0...20 mA, 4...20 mA Can be used in hazardous areas Field power sourced from the power injection Short circuit proof, configurable current limit 0.1 to 1.2 A Transmitter power current limited to 25 mA (for 2-wire field devices; input current limitation for SCM pin 2) 16 bit A/D converter resolution Galvanic isolation Protected against wrong wiring (±35 V) between all terminals Hardware filter, rise time 1 ms Software filter configurable through parameters Diagnostics: -Loop supervision (open circuit and short circuit) -Internal hardware supervision -Communication supervision -Device malfunction low, under range, over range, and device malfunction high detection -Internal power supervision -Power injection supervision Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module. |  |
| AIS830 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The AIS830 is an Analog Input Signal Conditioning Module for temperature measurements via RTD/TC/mV. | Analog input for 2-wire, 3-wire, or 4-wire RTD input or TC input with cold Junction Compensation Can be used in hazardous areas 16 bit A/D converter resolution Channel to channel galvanic isolation Software filter configurable through parameters Protected against wrong wiring Configurable software filter Diagnostics: -Loop supervision (open circuit and short circuit) -Communication supervision -Internal power supervision Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module. |  |
| AIS850 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The AIS850 is an Analog Input Signal Conditioning Module (16bit) for use in intrinsically safe applications (Zone 0) supporting 2-wire devices and HART communications. | Analog input for 2-wire field devices Signal range: 4...20 mA and 0...20 mA Can be used in hazardous areas providing intrinsically safe signals up to Zone 0 Transmitter power current limited to 25 mA 16 bit A/D converter resolution Channel to channel galvanic isolation Hardware filter, rise time 1 ms Software filter configurable through parameters Diagnostics: -Loop supervision (open circuit and short circuit) -Internal hardware supervision -Communication supervision -Device malfunction low, under range, over range, and device malfunction high detection -Internal power supervision LED indicators: -Status (S) -Primary (P) Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module. |  |
| AIS880 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The AIS880 is an Analog Input Signal Conditioning Module (16-bit) for use in High Integrity applications (certified for SIL3) supporting 2/4-wire devices and HART communications. | Analog input for 2-wire or external powered 4-wire field devices Signal range: 4...20 mA Can be used in hazardous areas Certified for Functional safety Transmitter power current limited to 30 mA 16 bit A/D converter resolution Channel to channel galvanic isolation Hardware filter, rise time 1ms Software filter configurable through parameters Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Device malfunction low, under range, over range and device malfunction high detection -Internal power supervision Support of HART field devices (up to HART application layer rev. 7) -HART Pass-Through -Cyclic read of up to two HART Device Variables -HART Device Validation Single loop granularity - each SCM handles a single channel. Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal. Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance. All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning. 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module. Certified for SIL3. |  |
| AIS885 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The AIS885 is an Analog Input Signal Conditioning Module (16-bit) for use in High Integrity applications (certified for SIL3) supporting 2/3/4-wire devices (1.2 amp) and HART communications. | Analog input for 2-wire, 3-wire or 4-wire field devices, powered by AIS885 Signal range: 4...20 mA Can be used in hazardous areas Certified for Functional safety Field power sourced from the power injection Short circuit proof, configurable current limit 0.1 to 1.2 A Transmitter power current limited to 25 mA (for 2-wire field devices; input current limitation for SCM pin 2) 16 bit A/D converter resolution Galvanic isolation Protected against wrong wiring (±35 V) between all terminals Hardware filter, rise time 1 ms Software filter configurable through parameters Diagnostics: -Loop supervision (open circuit and short circuit) -Internal hardware supervision -Communication supervision -Device malfunction low, under range, over range and device malfunction high detection -Internal power supervision -Power injection supervision LED indicators: -Status (S) -Primary (P) Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module. |  |
| AIS890 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The AIS890 is an Analog Input Signal Conditioning Module (16-bit) for use in High Integrity (certified for SIL3) and intrinsically safe applications (Zone 0) supporting 2-wire devices and HART communications. | Analog input for 2-wire field devices Signal range: 4...20 mA Can be used in hazardous areas providing IS signals up to Zone 0 Certified for Functional safety Transmitter power current limited to 25 mA 16 bit A/D converter resolution Channel to channel galvanic isolation Hardware filter, rise time 1ms Software filter configurable through parameters Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Internal hardware supervision -Communication supervision -Device malfunction low, under range, over range and device malfunction high detection -Internal power supervision Support of HART field devices (up to HART application layer rev. 7): -HART Pass-Through -Cyclic read of up to two HART Device Variables -HART Device Validation Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module Certified for SIL3 |  |
| AOS810 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The AOS810 is an Analog Output Signal Conditioning Module (16-bit) supporting 2-wire devices and HART communication. | Analog output for 2-wire field devices Signal range: 0...20 mA or 4...20 mA Can be used in hazardous areas 16 bit D/A converter Channel to channel galvanic isolation Configurable output rise/fall times (down to 1 ms; with HART down to 20 ms) Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Internal power supervision Support of HART field devices (up to HART application layer rev. 7): -HART Pass-Through -Cyclic read of up to two HART Device Variables -HART Device Validation OSP (Output Set to Predetermined value) Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance. All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module |  |

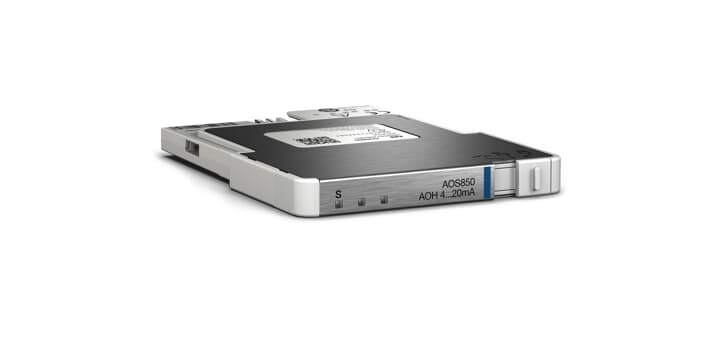

| AOS850 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The AOS850 is an Analog Output Signal Conditioning Module (16-bit) for use in Intrinsically safe applications (Zone 0) supporting 2-wire field devices and HART communications. | Analog output for 2-wire field devices Signal range: 0...20 mA or 4...20 mA Can be used in hazardous areas 16 bit D/A converter Channel to channel galvanic isolation Configurable output rise/fall times (down to 1 ms; with HART down to 20 ms) Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Internal power supervision Support of HART field devices (up to HART application layer rev. 7): -HART Pass-Through -Cyclic read of up to two HART Device Variables -HART Device Validation OSP (Output Set to Predetermined value) Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module |  |
| AOS880 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The AOS880 is an Analog Output Signal Conditioning Module (16-bit) for use in High Integrity applications (certified for SIL3) supporting 2-wire devices and HART communications. | Analog output for 2-wire field devices Signal range: 4...20 mA Can be used in hazardous areas Certified for Functional safety Transmitter power current limited to 30 mA 16 bit A/D converter resolution Channel to channel galvanic isolation Configurable output rise/fall times (down to 1ms; with HART down to 20 ms) Safe state shutdown (0 V) in case of internal failures or lost communication.) Protected against wrong wiring Configurable software filter Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Internal power supervision Support of HART field devices (up to HART application layer rev. 7): -HART Pass-Through -Cyclic read of up to two HART Device Variables -HART Device Validation Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal. Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance. All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning. 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module. Certified for SIL3 |  |
| CI845 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The CI845 Ethernet Fieldbus Communication Interface Module (FCI) is responsible for communications of S800 I/O or Select I/O to the AC 800M controllers. For redundant configurations, two CI845s are required to be installed in the TU860 or TU865 Ethernet Field Communications Interface MTUs. | Can be used as single or redundant Supports both Select I/O and S800 on Ethernet -Supports 12 single or 12 redundant S800 I/O modules -Supports up to 192 Select I/O channels Possible to use with single or redundant 24V power supplies Built-in power voting Built-in supervision of power supply A and power supply B Built-in cabinet temperature measurement Built-in diagnostics Soft marshalling Optimized engineering HART v7, HART pass-through HART variables to the application (Select I/O) Sequense of Events Supports hot swap Can be used in hazardous area Mechanical locking slider which turns off power before removal Mechanical keying LED indicators | |

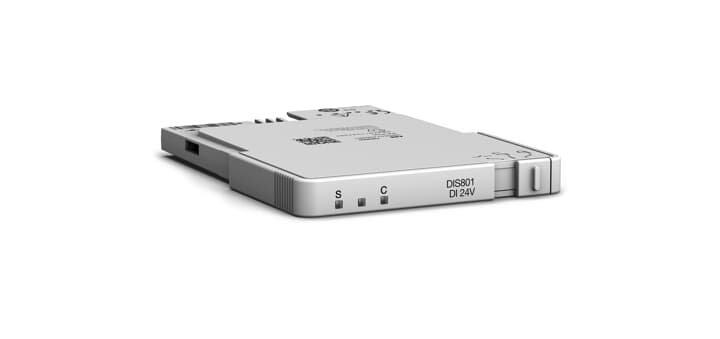

| DIS801 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DIS801 is a Digital Input 24 V Signal Conditioning Module supporting 2/3/4-wire devices with Sequence of Events (SOE). | Digital input for 2-wire, 3-wire and externally powered 4-wire field devices Can be used in hazardous areas Field device power output current limited to 35 mA Channel to channel galvanic isolation Configurable software signal filter 0...100 ms Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Communication supervision -Internal power supervision Sequence of Events (SoE) DIS801 supports both Normally Open (NO) and Normally Closed (NC) 24 V loops Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module |  |
| DIS810 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DIS810 is a Digital Input 24V Signal Conditioning Module supporting 2/3/4-wire devices with Sequence of Events (SOE). | Digital input for 2-wire, 3-wire and externally powered 4-wire field devices Can be used in hazardous areas Field device power output current limited to 30 mA Channel to channel galvanic isolation Configurable software signal filter 0...100 ms Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Internal power supervision Sequence of Events (SoE) DIS810 supports both Normally Open (NO) and Normally Closed (NC) 24 V loops Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module |  |
| DIS820 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DIS820 is a Digital Input 120 V Signal Conditioning Module supporting 2/3/4-wire devices with Sequence of Events (SOE). | Digital input for 2-wire, 3-wire and externally powered 4-wire field devices Channel to channel galvanic isolation Field power sourced from the power injection Configurable software signal filter 0...100 ms Diagnostics: -Fuse status supervision -Communication supervision -Internal power supervision Sequence of Events (SoE) DIS820 supports both Normally Open (NO) and Normally Closed (NC) Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module |  |
| DIS821 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DIS821 is a Digital Input 230 V Signal Conditioning Module supporting 2/3/4-wire devices with Sequence of Events (SOE). | Digital input for 2-wire, 3-wire, and externally powered 4-wire field devices Channel to channel galvanic isolation Field power sourced from the power injection Configurable software signal filter 0...100 ms Diagnostics: -Fuse status supervision -Communication supervision -Internal power supervision Sequence of Events (SoE) DIS821 supports both Normally Open (NO) and Normally Closed (NC) Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance Mechanical keying to prevent insertion of wrong module type after commissioning 24 V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module |  |
| DIS850 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DIS850 is a Digital Input Signal Conditioning Module for use in intrinsically safe applications (Zone 0) supporting 2-wire NAMUR field devices with Sequence of Events (SOE). | Digital input for 2-wire field devices (NAMUR proximity switches and contacts according to EN 60947-5-6) Can be used in hazardous areas providing IS signals up to Zone 0 Channel to channel galvanic isolation Configurable software signal filter 0...100 ms Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Internal power supervision Sequence of Events (SoE) DIS850 supports both Normally Open (NO) and Normally Closed (NC) 24 V loops Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module |  |
| DIS880 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DIS880 is a Digital Input 24V Signal Conditioning Module for use in High Integrity applications (certified for SIL3) supporting 2/3/4-wire devices with Sequence of Events (SOE). | Digital input for 2-wire, 3-wire and externally powered 4-wire field devices Can be used in hazardous areas Field device power output current limited to 30 mA Channel to channel galvanic isolation Configurable software signal filter 0...100 ms Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Internal power supervision Sequence of Events (SoE) DIS880 supports both Normally Open (NO) and Normally Closed (NC) 24 V loops and both will confirm to SIL3. Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module Certified for SIL3 |  |
| DIS890 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DIS890 is a Digital Input Signal Conditioning Module for use in High Integrity (certified for SIL3) and intrinsically safe applications (Zone0) supporting 2-wire NAMUR field devices with Sequence of Events (SOE). | Digital input for 2-wire field devices (NAMUR proximity switches and contacts according to EN 60947-5-6) Can be used in hazardous areas up to Zone 0 Field device power output current limited to 30 mA Channel to channel galvanic isolation Configurable software signal filter 0...100 ms Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Internal power supervision Sequence of Events (SoE) DIS890 supports both Normally Open (NO) and Normally Closed (NC) 24 V loops and both will confirm to SIL3 Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module Certified for SIL3 |  |
| DOS801 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DOS801 is a Digital Output (24V / 0.6A) Signal Conditioning Module supporting 2-wire devices. | Digital output for 2-wire field devices 24 V / 0.6 A current sourcing Can be used in hazardous areas Field power sourced from the power injection Short circuit proof, electronically current limited to 0.6 A Built-in inductive load suppression, free-wheeling diode Galvanic isolation Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Communication supervision -Internal power supervision -Power injection supervision OSP (Output Set to Predetermined value) Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal. Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance. All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning. 24 V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module |  |
| DOS810 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DOS810 is a Digital Output (24V / 0.6A) Signal Conditioning Module supporting 2-wire devices. | Digital output for 2-wire field devices 24 V / 0.6 A current sourcing Can be used in hazardous areas Field power sourced from the power injection Short circuit proof, electronically current limited to 0.6 A Built-in inductive load suppression, free-wheeling diode Galvanic isolation Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Internal power supervision -Power injection supervision OSP (Output Set to Predetermined value) Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal. Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance. All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning. 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module |  |
| DOS820 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DOS820 is a Digital Output Relay NO Signal Conditioning Module supporting 2-wire devices. | Digital output for 2-wire field devices 5-250 V AC, 5-125 V DC, up to 3 A Can be used in hazardous areas Field power sourced from the power injection Channel to channel galvanic isolation Diagnostics: -Fuse status supervision -Communication supervision -Internal power supervision OSP (Output Set to Predetermined value) Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal. Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance. Mechanical keying to prevent insertion of wrong module type after commissioning. 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module |  |
| DOS880 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DOS880 is a Digital Output (24 V / 0.6 A) Signal Conditioning Module for use in High Integrity applications (certified for SIL3) supporting 2-wire devices. | Digital output for 2-wire field devices 24 V/0.6 A current sourcing Can be used in hazardous areas Certified for Functional safety Field power sourced from the power injection Short circuit proof, electronically current limited to 0.6 A Built-in inductive load suppression, free-wheeling diode Galvanic isolation Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Internal power supervision -Power injection supervision Single loop granularity - each SCM handles a single channel. Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal. Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance. All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning. 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module. Certified for SIL3 |  |

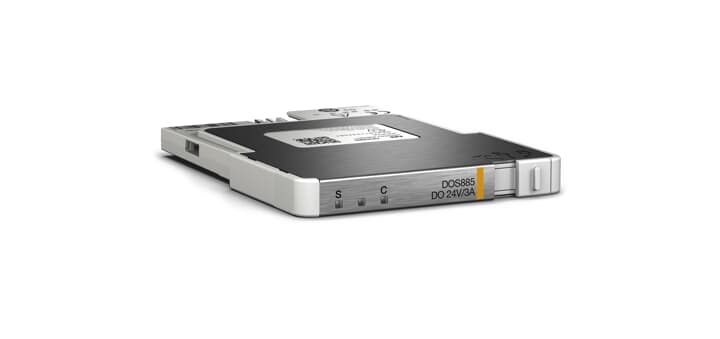

| DOS885 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The DOS885 is a Digital Output (24V / 3A) Signal Conditioning Module for use in High Integrity applications (certified for SIL3) supporting 2-wire devices such as solenoids, horns, and beacons. | Digital output for 2-wire field devices 24 V/3 A current sourcing Can be used in hazardous areas Certified for Functional safety Field power sourced from the power injection Short circuit proof, electronically current limited to 3 A Built-in inductive load suppression, free-wheeling diode Galvanic isolation Protected against wrong wiring Diagnostics: -Loop supervision (open circuit and short circuit) -Hardware error supervision -Communication supervision -Internal power supervision -Power injection supervision Single loop granularity - each SCM handles a single channel Supports hot swap Mechanical locking slider which turns off field device power and/or output before removal. Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance. All SCMs have electronic current limitation Mechanical keying to prevent insertion of wrong module type after commissioning. 24V DC powered through Modulebus Configurable through parameters LED indicators on the SCM indicate the operational state of the module Certified for SIL3 |  |
| GIS810 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The Generic IO Module (GIO) handles the communication between Fieldbus Communication Interface (FCI) and the Signal Conditioning Modules (SCM). It communicates upstream with the FCI using Modulebus and downstream with up to 16 SCMs. Generic I/O Module. Use as single or redundant. | Distribution of process I/O data between the SCMs and the FCI Mechanical locking slider which turns off the power supplies before removal Supports hot swap Mechanical keying to prevent insertion of wrong module type Can be used in hazardous areas LED indicators: Status (S) Primary (P) Diagnostics: Hardware error supervision Communication supervision Internal power supervision |  |
| GIS880 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. GIS880 a Generic I/O Module for High Integrity. Certified for SIL3. Use as single or redundant. | Distribution of process I/O data between the SCMs and the FCI Mechanical locking slider which turns off the power supplies before removal Supports hot swap Mechanical keying to prevent insertion of wrong module type Can be used in hazardous areas Certified for SIL3 LED indicators: Status (S) Primary (P) Diagnostics: Hardware error supervision Communication supervision Internal power supervision |  |
| HI880 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. HI880 is a High Integrity Module who enables High Integrity SIL3 communication with the Select I/O. | Shall be used with Select I/O High Integrity Supports hot swap Can be used in hazardous areas | |
| TB868 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The TB868 Modulebus Terminator is required for the termination of the Modulebus at the end of each cluster. If Compact Modulebus Extensions are used between groups of I/O units, the Modulebus Terminator has to be placed at the end of the last group. The Modulebus Terminator is connected at the bottom of the last I/O MTU. One Modulebus Terminator is needed per cluster. | Terminates the Modulebus. DIN rail mounted. The locking device locks it to the DIN rail. Locking device that locks the Modulebus Terminator to the MTU for Select I/O. Can be used in hazardous areas. |  |
| TC810 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. TC810 is an Ethernet Adapter for copper media with a built-in 2 port (RJ45) switch. For redundant configurations, two Ethernet Adapters TC810s are required to be installed in the TU860 or TU865 Ethernet Field Communications Interface MTUs. | Can be used as single or redundant Supports both Select I/O and S800 on Ethernet Hosts two RJ45 ports Built-in switch Built-in diagnostics Supports hot swap Can be used in hazardous area Mechanical locking slider which turns off power before removal Mechanical keying LED indicators | |
| TC811 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. TC811 is an Ethernet Adapter for fiber optic media with a built-in 2-port switch. Hosts two LC ports. For redundant configuration two Fieldbus Communication Interfaces CI845, two Ethernet Adapters TC811, and one TU860 or one TU865 are needed. | Can be used as single or redundant Supports both Select I/O and S800 on Ethernet Hosts two LC ports Built-in switch Built-in diagnostics Supports hot swap Can be used in hazardous area Mechanical locking slider which turns off power before removal Mechanical keying LED indicators | |
| TU865 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. The TU865 is an Ethernet Fieldbus Communication Interface Module Termination Unit (MTU) for connection to up to 12 Select I/O MTUs and hosts single and redundant Ethernet Adapters (TC810, TC811) and Ethernet FCI Communications Interface Modules (CI845s) for reliable communications with the AC 800M controllers. The TU865 also hosts an optional High Integrity Module (HI880) for use in SIL 3 safety applications and mounting is on a vertical DIN rail. One TL814K01 cover plate is included with every TU865. | | |
| TUS810K01 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. The TUS810K01 Select I/O Modular Termination Unit (MTU) hosts Generic I/O modules (GIOs) and up to 16 Signal Conditioning Modules (SCMs) that completes a single I/O unit. There is self-coding on the FTBs that gets set upon the initial insertion of an SCM so that if an SCM is replaced, only the same type of SCM can be inserted. To insert another type of SCM, the coding can be reset manually. The MTU also has coding for the GIO, so that it can only be replaced with the same type of GIO. TUS810K01 includes the DIN-rail mountable TUS810 MTU, 16 pcs FTB810 Field Terminal Blocks, 2 pcs PTB810 Power Injection Terminal Blocks and 1 pcs TUC810 Terminal Cover. Mounting on vertical DIN-rail. | Two slots for connection of Generic I/O modules (GIO). 16 slots for connection of Signal Conditioning Modules (SCM). Two slots for connection of Power Terminal Blocks (PTB), external 24V supply. Two Modulebus connectors, one in and one out. One slot for connection of a grounding bar (GTB). DIN rail mounted. 2 locking devices to lock the MTU to the DIN rail. Slots for screw lugs (optional, for harsh high vibration environment). Can be used in hazardous areas. |  |
| TUS810K02 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. The TUS810K02 Select I/O Modular Termination Unit (MTU), for Intrinsically safe (IS) applications, hosts Generic I/O modules (GIOs) and up to 16 Signal Conditioning Modules (SCMs) which completes a single I/O unit. When using the TUS810K02 for IS applications, the Power Injection Terminal Blocks are removed and replaced with empty slot protectors. There is self-learning coding on the FTBs that gets set upon the initial insertion of an SCM so that if an SCM is replaced, only the same type of SCM can be inserted. To insert another type of SCM, the coding can be reset manually. The MTU also has coding for the GIO, so that it can only be replaced with the same type of GIO. TUS810K02 includes the DIN-rail mountable TUS810 MTU, 16 pcs FTB890 IS Field Termination Blocks, 2 pcs of TL820 Empty Slot Protectors and 1 pcs of TUC810 Terminal Cover. Mounting on vertical DIN-rail. | Two slots for connection of Generic I/O modules (GIO). 16 slots for connection of Signal Conditioning Modules (SCM). For intrinsically safe usage, TL820 has to be inserted into the PTB slots (included in TUS810K02) Two Modulebus connectors, one in and one out. One slot for connection of a grounding bar (GTB). DIN rail mounted. 2 locking devices to lock the MTU to the DIN rail. Slots for screw lugs (optional, for harsh high vibration environment). Can be used in hazardous areas Prepared for intrinsically safe usage by the components included in TUS810K02 |  |
| TUS810K03 | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. The TUS810K03 Select I/O Modular Termination Unit (MTU), for 120/230V applications, hosts Generic I/O modules (GIOs) and up to 16 Signal Conditioning Modules (SCMs) which completes a single I/O unit. There is self-learning coding on the FTBs that gets set upon the initial insertion of an SCM so that if an SCM is replaced, only the same type of SCM can be inserted. To insert another type of SCM, the coding can be reset manually. The MTU also has a coding for the GIO, so that it can only be replaced with the same type of GIO. The TUS810K03 (120/230V) Module Termination Unit includes 1ps TUS810K03, 16 pcs FTB820 Field Termination Blocks, 2pcs PTB820 Power Injection Blocks and 1 pcs TUC810 Terminal cover. Mounting on vertical DIN-rail. | Two slots for connection of Generic I/O modules (GIO). 16 slots for connection of Signal Conditioning Modules (SCM). Two slots for connection of Power Terminal Blocks (PTB), external 120/230V supply Two Modulebus connectors, one in and one out. One slot for connection of a grounding bar (GTB). DIN rail mounted. 2 locking devices to lock the MTU to the DIN rail. Slots for screw lugs (optional, for harsh high vibration environment). Used for 120/230V applications |  |
| GFS810 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The GFS810 provides ground fault detection for signals with field supply sources from external power injection. | Ground fault detection for signals with field supply sourced from external power injection. Measuring of resistance to ground to provide it as an analog value to the application. Can be used with all GIO module types (GIS810 and GIS880). Galvanic isolation. Diagnostics: Line break supervision of ground connection. Internal self-test. Test option for ground fault detection function (through external button). LED indicators on the SCM indicate the operational state of the module. | - |
| GTB810 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The GTB810 Grounding Terminal Bar has 34 screw terminals, is optionally added to the TUS810 Select I/O MTU, and is used to land ground shields and spare cables. | Grounding bar GTB810 is an option to the I/O unit GTB810 is isolated and can be connected by the user to ground Facilitates grounding of spare cores and cable shields 34 screw terminals (first and last terminal used for the grounding) Can be used in hazardous areas | - |
| GTS810 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The GTS810 Grounding Termination Module provides a ground termination alternative for field wires associated with a single Field Termination Block (FTB). | Ground termination option for all field wires connected to the belonging FTB Easy reconnection of field wiring when GTS810 will be replaced by an SCM Mechanical keying to prevent insertion of wrong module type after commissioning Can be used in hazardous areas Usable for (blue) IS and (grey) non-IS FTB No LED indicators | - |
| TB861V009 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. A cluster of up to 12 I/O units can be connected to one FCI. If they are all on the same DIN rail, the I/O MTUs are connected to each other. The Modulebus then goes though the I/O MTUs. If not all the I/O MTUs can fit on the same DIN rail, TB861 can be used to extend the Modulebus to the first I/O MTU on the next DIN rail. The outlet part is connected to the bottom of the last I/O MTU on the first DIN rail. The inlet part is connected to the top of the first I/O MTU on the second DIN rail. TB861V009 extends the Modulebus from one DIN rail to another. Length 0.9 m. | Extends the Modulebus from one DIN-rail to another. Length 0.9 m. Available in three lengths DIN rail mounted. 2 locking devices (one locks outlet to DIN rail and one locks inlet to DIN rail). | - |
| TB861V011 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. A cluster of up to 12 I/O units can be connected to one FCI. If they are all on the same DIN rail, the I/O MTUs are connected to each other. The Modulebus then goes though the I/O MTUs. If not all the I/O MTUs can fit on the same DIN rail, TB861 can be used to extend the Modulebus to the first I/O MTU on the next DIN rail. The outlet part is connected to the bottom of the last I/O MTU on the first DIN rail. The inlet part is connected to the top of the first I/O MTU on the second DIN rail. TB861V011 extends the Modulebus from one DIN-rail to another. Length 1.1 m. | Extends the Modulebus from one DIN-rail to another. Length 1.1 m. Available in three lengths. DIN rail mounted. 2 locking devices (one locks outlet to DIN rail and one locks inlet to DIN rail). | - |
| TB861V015 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. A cluster of up to 12 I/O units can be connected to one FCI. If they are all on the same DIN rail, the I/O MTUs are connected to each other. The Modulebus then goes though the I/O MTUs. If not all the I/O MTUs can fit on the same DIN rail, TB861 can be used to extend the Modulebus to the first I/O MTU on the next DIN rail. The outlet part is connected to the bottom of the last I/O MTU on the first DIN rail. The inlet part is connected to the top of the first I/O MTU on the second DIN rail. TB861V015 extends the Modulebus from one DIN rail to another. Length 1.5 m. | Extends the Modulebus from one DIN-rail to another. Length 1.5 m. Available in three lengths. DIN rail mounted. 2 locking devices (one locks outlet to DIN rail and one locks inlet to DIN rail). | - |
| TL810K01 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. Empty slot protector for a Fieldbus Communication Interface slot on the Ethernet FCI Module Termination Unit. 10 pieces per package. | Empty slot protector for a Fieldbus Communication Interface slot on the Ethernet FCI Module Termination Unit | - |
| TL811K01 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. Empty slot protector for a Ethernet Adapter slot on the Ethernet FCI Module Termination Unit. 10 pieces per package. | Empty slot protector for a Ethernet Adapter slot on the Ethernet FCI Module Termination Unit | - |
| TL812K01 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. Empty slot protector for a Generic I/O Module slot on the Select I/O Module Termination Unit. 10 pieces per package. | Empty slot protector for a Generic I/O Module slot on the Select I/O Module Termination Unit | - |
| TL813K01 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. Empty slot protector for a Signal Conditioning Module slot on the Select I/O Module Termination Unit. 10 pieces per package. | Empty slot protector for a Signal Conditioning Module slot on the Select I/O Module Termination Unit | - |
| TL814K01 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. Empty slot protector for a High Integrity Module slot on the Ethernet FCI Module Termination Unit. 10 pieces per package. | Empty slot protector for a High Integrity Module slot on the Ethernet FCI Module Termination Unit Included with every TU860 and TU865 | - |
| TL820 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. TL820 Empty Slot Protector for Power Injection Terminal Blocks. 10 pieces of TL820 per package. | Empty Slot Protector for Power Injection Terminal Blocks Replaces the Power Injection Terminal Block in I/O MTUs that include intrinsically safe Select I/O equipment | - |
| TL830/TL831 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. TL830 and TL831 IP30 protection cover for power inlets on FCI base plate TU865/TU860. 20 pieces of TL830 and 10 pieces of TL831 per package. | Protection cover for power inlets on FCI base plate TU865/TU860 Usable for enabling IP30 for the power supply connectors Required in case that intrinsically safe Select I/O equipment is used together with an FCI in the same cabinet TL830 has to be used to cover the power supply connector with any connected power supply cables TL831 has to be used to cover the power supply connectors without connected power supply cables | - |
| TS810K01 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. Screw lugs for TU860/TU865 and TUS810. 100 pieces per package. | Screw lugs for TU860/TU865 and TUS810 Screw lugs are optional; for harsh vibration environment | - |
| TUW890 (Accessories) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The TUW890 is a separator wall used in IS applications. Specifically, this wall is for added protection and placed between Select I/O MTUs having intrinsically safe SCMs and Select I/O MTUs that include non-IS SCMs. (10 pieces of TUW890 per package) | IS Separator for I/O MTU (IS-wall) Usable between I/O MTU with (blue) intrinsically safe and (grey) non-intrinsically safe FTB Can be used in hazardous areas | - |
| FTB810K01 (Spare parts) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The FTB810 is a field terminal block with 4 screw terminals to be used with a single Signal Conditioning Module. The FTB is installed on the MTU for Select I/O (TUS810) and includes a keying mechanism that is set to a specific code when an SCM is first inserted to ensure only the same type of SCM can be installed in that slot. The key can be reset by removing and reinserting the FTB. (10 pieces per package) | One slot for connection of SCM Four screw terminals for connection of wires Coding system with 5 coding fingers for self-learning and resettable coding of the SCM type Can be used in hazardous areas Hole for each terminal for connecting test probes (for measurements) | - |
| FTB820K01 (Spare parts) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The FTB820K01 is a field terminal block (Red) 120/230 V kit with 4 screw terminals to be used with a single Signal Conditioning Module. The FTB is installed on the MTU for Select I/O (TUS810) and includes a keying mechanism that is set to a specific code when an SCM is first inserted to ensure only the same type of SCM can be installed in that slot. The key can be reset by removing and reinserting the FTB. (10 pieces per package) | Features and benefits One slot for connection of SCM Four screw terminals for connection of wires Coding system with 5 coding fingers for self-learning and resettable coding of the SCM type Used for 120/230V applications Hole for each terminal for connecting test probes (for measurements) | - |
| FTB840K01 (Spare parts) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The FTB840 is a redundant terminal signal block with 4 screw terminals to be used with a redundant pair of Signal Conditioning Modules. The FTB is installed on the MTU for Select I/O (TUS810) and includes a keying mechanism that is set to a specific code when an SCM is first inserted to ensure only the same type of SCM can be installed in that slot. The key can be reset by removing and reinserting the FTB. (10 pieces per package) | Two slots for connection of a redundant SCM pair Four screw terminals for connection of wires Coding system with 5 coding fingers for self-learning and resettable coding of the SCM type Can be used in hazardous areas Hole for each terminal for connecting test probes (for measurements) | - |
| FTB890K01 (Spare parts) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. The FTB890 is a field terminal block with 4 screw terminals to be used with a single intrinsically safe Signal Conditioning Module. The FTB is installed on the MTU for Select I/O (TUS810) and includes a keying mechanism that is set to a certain code when an SCM is inserted for the first time to ensure only the same type of SCM can be installed in that slot. The key can be reset by removing and reinserting the FTB. (10 pieces per package). | One slot for connection of SCM Four screw terminals for connection of wires Coding system with 5 coding fingers for self-learning and resettable coding of the SCM type Can be used in hazardous areas Hole for each terminal for connecting test probes (for measurements) | - |
| PTB810K01 (Spare parts) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The PTB810K01 Power Injection Terminal Block Kit is used for the Select I/O Module Termination Unit (TUS810). Two PTB810s are needed per MTU. Digital output SCMs (DOS810, DOS880, DOS885) and high amp SCMs (DOS885, AIS885) require power injection. (10 pieces per package). | Injects 24 V field power to high power SCMs on the MTU Can provide up to 20 A. Can be used in hazardous areas. Hole for each terminal for connecting test probes (for measurements Four screws for daisy chain option of the power supply | - |
| PTB820K01 (Spare parts) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single-channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. The PTB820K01 Power Injection Terminal Block (Red) 120/230 V Kit is used for the Select I/O Module Termination Unit (TUS810). Two PTB820s are needed per MTU. (10 pieces per package). | Injects 120/230 V field power to 120/230V SCMs Can provide up to 20 A. Used for 120/230V applications Hole for each terminal for connecting test probes (for measurements Four screws for the daisy-chain option of the power supply | - |
| TUC810K01 (Spare parts) | System 800xA DCS | Select IO | Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes and supports standardization of I/O cabinetry ensuring automation projects are delivered on-time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel. TUC810K01 an Terminal Cover Kit protects the field terminal blocks and holds wiring labels for the Select I/O TUS810K01 and TUS810K02 MTUs. (10 pieces per package). | Terminal Cover which holds user labels for the Select I/O Module Termination Unit Swiveling | - |
NETWORKS
+ Networks
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|
| NE801 | System 800xA DCS | Networks | - | ||
| NE802 | System 800xA DCS | Networks | - | ||
| NE810 | System 800xA DCS | Networks | - | ||
| NE820 | System 800xA DCS | Networks | - | ||
| NE840 | System 800xA DCS | Networks | - | ||
| NE870 | System 800xA DCS | Networks | - | ||
| NE871 | System 800xA DCS | Networks | - | ||
| NE801 | System 800xA DCS | Networks | - | ||
| NE802 | System 800xA DCS | Networks | - | ||
| NE810 | System 800xA DCS | Networks | - | ||
| NE820 | System 800xA DCS | Networks | - | ||
| NE840 | System 800xA DCS | Networks | - | ||
| NE870 | System 800xA DCS | Networks | - | ||
| NE871 | System 800xA DCS | Networks | - | ||
| NE801 | System 800xA DCS | Networks |  | ||
| NE802 | System 800xA DCS | Networks |  | ||
| NE810 | System 800xA DCS | Networks |  | ||
| NE820 | System 800xA DCS | Networks |  | ||
| NE840 | System 800xA DCS | Networks |  | ||
| NE870 | System 800xA DCS | Networks |  | ||
| NE871 | System 800xA DCS | Networks |  |
PANELS
+ Panels
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|
| Panel 800 6.2 2000 tags (Dongles) | System 800xA DCS | Panels | The SD83x Power Supply Units are designed to meet all the applicable electrical safety data stated by the EN 50178 harmonized European Standard Publication and the additional safety and function data required by EN 61131-2 and UL 508. The secondary output circuitry is accepted for SELV or PELV applications. They are switch-mode Power Supply Units that convert the mains voltage to 24 volts d.c. These power supplies can be utilized for non-redundant and redundant applications. Redundant applications require diode voting units SS823 or SS832. With the type SD83x series Power Supply Units, there is no requirement for the installation of a mains filter. They provide a soft start feature; power-on of an SD83x will not trip fuses or earth-fault circuit breakers. | Simple DIN-rail mounting Class I Equipment, (when connected to Protective Earth, (PE)) Over-voltage Category III for connection to primary main TN network Protective separation of secondary circuit from primary circuit Accepted for SELV and PELV applications The output of the units is protected against over current (current limit) and over-voltage (OVP) Both a.c. and d.c. input at SD831 and SD834 | .png) |
| Panel 800 6.2 250 tags (Dongles) | System 800xA DCS | Panels | Panel 800 Runtime and dedicated license dongles, makes Panel 800 applications to be run on normal Windows PC. This enables engineering efficient reuse of the panels applications in situations when a PC based HMI is required in addition to process panels. Since the Panel 800 Runtime can be used to visualize data from 250 up to 4000 signals, it is also suitable for mid-sized SCADA applications even when process panels are not needed. Enables the possibility to run Panel 800 version 6.2 applications in a PC, using Panel 800 Runtime software. Panel 800 Version 6.2 dongle for 250 tags. | For applications other than the panel When you need large screens or extended desktops or when you want to run more software on the same platform. Other use cases are when you need large quantities of data in an application, remote configuration and maintenance or reporting using Excel files. | .png) |
| Panel 800 6.2 4000 tags (Dongles) | System 800xA DCS | Panels | Panel 800 Runtime and dedicated license dongles, makes Panel 800 applications to be run on normal Windows PC. This enables engineering efficient reuse of the panels applications in situations when a PC based HMI is required in addition to process panels. Since the Panel 800 Runtime can be used to visualize data from 250 up to 4000 signals, it is also suitable for mid-sized SCADA applications even when process panels are not needed. Enables the possibility to run Panel 800 version 6.2 applications in a PC, using Panel 800 Runtime. Panel 800 Version 6.2 dongle for 4000 tags. | For applications other than the panel When you need large screens or extended desktops or when you want to run more software on the same platform. Other use cases are when you need large quantities of data in an application, remote configuration and maintenance or reporting using Excel files. | .png) |
| PP875 | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The standard range of Panel 800 comprises of PP875, PP881, PP883, PP886 and PP895 which are easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All standard panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screens and high-resolution displays for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with a familiar Microsoft® Windows® environment along with multiple language support results in quick, easy, and efficient engineering. State-of-the-art graphics Vector-based, high-resolution graphics in TFL/LED display, with the icon-based interface, navigation and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures range between -10° C to + 60° C with maximum 85% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options is available for local communication, expansion, remote access and more. Try your application before you use it Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it. |  |
| PP875H | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The black range of Panel 800 comprises of PP875M, PP875H and PP886M that are easy-to use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All black panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screen, high resolution display for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering. State-of-the-arts graphics Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface, navigation and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -10° C to + 60° C with maximum 85% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more. Digital output 2 x DO Solid state relay, 0.5A@24VDC. |  |
| PP875M | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The black range of Panel 800 comprises of PP875M, PP875H and PP886M that are easy-to use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All black panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screen, high resolution display for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering. State-of-the-arts graphics Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface, navigation and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -10° C to + 60° C with maximum 85% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more. Try your application before you use it Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it. |  |
| PP881 | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The standard range of Panel 800 comprises of PP875, PP881, PP883, PP886 and PP895 which are easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All standard panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screens and high-resolution displays for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with a familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering. State-of-the-art graphics Vector-based, high-resolution graphics in TFL/LED display, with the icon-based interface, navigation, and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures range between -10° C to + 60° C with maximum 85% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more. Try your application before you use it Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it. |  |
| PP883 | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The standard range of Panel 800 comprises of PP875, PP881, PP883, PP886 and PP895 which are easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All standard panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screens and high-resolution displays for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with a familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering. State-of-the-art graphics Vector-based, high-resolution graphics in TFL/LED display, with the icon-based interface, navigation, and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures range between -10° C to + 60° C with maximum 85% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more. Try your application before you use it Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it. |  |
| PP886 | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The standard range of Panel 800 comprises of PP875, PP881, PP883, PP886 and PP895 which are easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All standard panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screens and high-resolution displays for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with a familiar Microsoft® Windows® environment along with multiple language support results in quick, easy, and efficient engineering. State-of-the-art graphics Vector-based, high-resolution graphics in TFL/LED display, with the icon-based interface, navigation and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures range between -10° C to + 60° C with maximum 85% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more. Try your application before you use it Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it. |  |
| PP886M | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The standard range of Panel 800 comprises of PP875M, PP875H and PP886M that are easy-to use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All black panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screen, high resolution display for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering. State-of-the-arts graphics Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface, navigation and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -10° C to + 60° C with maximum 85% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more. Try your application before you use it Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it. |  |
| PP886R | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The rugged range of Panel 800 comprises PP886R, PP887H, PP887H-CFC, and PP887S, easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All rugged panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screens, and high-resolution displays for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering. State-of-the-arts graphics Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface, navigation and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -30° C to + 70° C with maximum 95% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more. Try your application before you use it Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it. |  |
| PP887H | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The rugged range of Panel 800 comprises PP886R, PP887H, PP887H-CFC, and PP887S, easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All rugged panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screens, and high-resolution displays for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering. State-of-the-arts graphics Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface, navigation and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -30° C to + 70° C with maximum 95% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access, and more. Try your application before you use it Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it. |  |
| PP887S | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The rugged range of Panel 800 comprises PP886R, PP887H, PP887H-CFC, and PP887S, easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All rugged panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screens, and high-resolution displays for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with a familiar Microsoft® Windows® environment along with multiple language support results in quick, easy, and efficient engineering. State-of-the-art graphics Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface, navigation and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty, and demanding environments. Operating temperatures range between -30° C to + 70° C with a maximum 95% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access, and more. IP66 Sealed panel PP887S is a fully sealed version with M12 connectors with IP66 ingress protection rating and ATEX/IECEx Zone 2 and Zone 22 (IP65) certification. The sealed touch panel has the same tolerance for harsh environments but can be mounted outdoors on a pole, outside of a cabinet. |  |
| PP895 | System 800xA DCS | Panels | Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The standard range of Panel 800 comprises of PP875, PP881, PP883, PP886 and PP895 which are easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All standard panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screens and high-resolution displays for increased efficiency and excellent operator interaction. | Easy to use A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with a familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering. State-of-the-art graphics Vector-based, high-resolution graphics in TFL/LED display, with the icon-based interface, navigation, and control. Robust and reliable Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures for PP895 range between 0° C to + 50° C with maximum 85% humidity. Truly open platform Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more. |  |
| CB802 Profibus DP Interface (Accessories) | System 800xA DCS | Panels | CB802 Profibus DP Communication Interface. PROFIBUS DP slave expansion module for Panel 800 Version 6 panels. Not possible to use for PP880R, PP885H, PP885M, PP885R, PP886R, PP886H, PP887H and PP887S. | - | |
| CB810 USB to Ethernet adapter (Accessories) | System 800xA DCS | Panels | CB810 USB to Ethernet adapter for programming. USB to Ethernet adapter with software. Cross over ethernet patch cable included in the kit. | - | |
| MB802V2 SD-card (Accessories) | System 800xA DCS | Panels | Secure Digital memory card 2GB Industrial grade for Version 6 panels. | - | |
| RX800 Adapter (Accessories) | System 800xA DCS | Panels | Adapter plate for installing the replacement panel PP881 on a PP877 mounting. | - | |
| RX874 (Accessories) | System 800xA DCS | Panels | Plastic front protection to protect the screen of Panel 800. RX874 Touch cover 7\" is possible to use for PP880R, PP874, PP874M, PP875, PP875M and PP875H. | - | |
| RX881 (Accessories) | System 800xA DCS | Panels | Plastic front protection to protect the screen of Panel 800. RX881 Touch cover 10\" is possible to use for PP881. | - | |
| RX883 (Accessories) | System 800xA DCS | Panels | Plastic front protection to protect the screen of Panel 800. RX883 Touch cover 12\" is possible to use for PP883. | - | |
| RX886 (Accessories) | System 800xA DCS | Panels | Plastic front protection to protect the screen of Panel 800. RX886 Touch cover 15\" is possible to use for PP886, PP886M, PP886R, PP887H and PP887S. | - | |
| RX895 (Accessories) | System 800xA DCS | Panels | Plastic cover for protection. Possible to use for PP895. | - | |
| TK858V002 Adapter Cable (Accessories) | System 800xA DCS | Panels | TK858V002 Adapter Cable (CAB 107). Adapter cable RS232 - RS485, 0.2 m long, 9 pin D-sub to 25 pin D-sub. For using 5.1 RS422/485 cables on Version 6 panels. | - | |
| TK859V000 Gender changer (Accessories) | System 800xA DCS | Panels | TK859V000 Gender changer (CAB 108). Gender changer 9 pin D-sub male/male. | - | |
| TK860V001 Splitter cable (Accessories) | System 800xA DCS | Panels | TK860V001 Splitter cable (CAB 109). Splitter cable Version 6 panel. Y-split cable to utilize more than two COM ports on Version 6 panels. Length 0.1 m. DB-9 male and DB-9 female connection.Not possible to use with PP887S. | - | |
| TK865V000 (Accessories) | System 800xA DCS | Panels | Connector M12 male 8 pin 5.5 - 7.5 mm, Gland (COM). Only for PP887S with M12 contacts. | - | |
| TK865V030 (Accessories) | System 800xA DCS | Panels | Cable M12 male 8 pin to blank, 3 m (COM). Only for PP887S with M12 contacts. | - | |
| TK865V100 (Accessories) | System 800xA DCS | Panels | Cable M12 male 8 pin to blank, 10 m (COM). Only for PP887S with M12 contacts. | - | |
| TK866V000 (Accessories) | System 800xA DCS | Panels | Connector M12 male 4 pin 5.5 - 7.5 mm, Gland (LAN). Only for PP887S with M12 contacts. | - | |
| TK866V030 (Accessories) | System 800xA DCS | Panels | Cable M12 male 4 pin to blank, 3 m (LAN). Only for PP887S with M12 contacts. | - | |
| TK866V100 (Accessories) | System 800xA DCS | Panels | Cable M12 male 4 pin to blank, 10 m (LAN). Only for PP887S with M12 contacts. | - | |
| TK867V000 (Accessories) | System 800xA DCS | Panels | Connector M12 female 4 pin 5.5 - 7.5 mm, Gland (POWER). Only for PP887S with M12 contacts. | - | |
| TK867V030 (Accessories) | System 800xA DCS | Panels | Cable M12 female 4 pin to blank, 3 m (POWER). Only for PP887S with M12 contacts. | - | |
| TK867V100 (Accessories) | System 800xA DCS | Panels | Cable M12 female 4 pin to blank, 10 m (POWER). Only for PP887S with M12 contacts. | - | |
| TK868V002 Splitter cable 3 way (Accessories) | System 800xA DCS | Panels | TK868V002 Splitter cable 3 way (CAB 150). Used when two serial RS485 connections are needed (1xRS232 + 2xRS485). Not possible to use with PP887S. | - |
POWER SUPPLIES & VOTERS
+ Power supplies & Voters
| Ürün Adı | Marka | Model | Açıklama | Özellikler ve Faydalar | Resim |
|---|---|---|---|---|---|
| SD831 | System 800xA DCS | Power supplies & Voters | The SD83x Power Supply Units are designed to meet all the applicable electrical safety data stated by the EN 50178 harmonized European Standard Publication and the additional safety and function data required by EN 61131-2 and UL 508. The secondary output circuitry is accepted for SELV or PELV applications. They are switch-mode Power Supply Units that convert the mains voltage to 24 volts d.c. These power supplies can be utilized for non-redundant and redundant applications. Redundant applications require diode voting units SS823 or SS832. With the type SD83x series Power Supply Units, there is no requirement for the installation of a mains filter. They provide a soft start feature; power-on of an SD83x will not trip fuses or earth-fault circuit breakers. | Simple DIN-rail mounting Class I Equipment, (when connected to Protective Earth, (PE)) Over-voltage Category III for connection to primary main TN network Protective separation of secondary circuit from primary circuit Accepted for SELV and PELV applications The output of the units is protected against over current (current limit) and over-voltage (OVP) Both a.c. and d.c. input at SD831 and SD834 |  |
| SD832 | System 800xA DCS | Power supplies & Voters | The SD83x Power Supply Units are designed to meet all the applicable electrical safety data stated by the EN 50178 harmonized European Standard Publication and the additional safety and function data required by EN 61131-2 and UL 508. The secondary output circuitry is accepted for SELV or PELV applications. They are switch-mode Power Supply Units that convert the mains voltage to 24 volts d.c. These power supplies can be utilized for non-redundant and redundant applications. Redundant applications require diode voting units SS823 or SS832. With the type SD83x series Power Supply Units, there is no requirement for the installation of a mains filter. They provide a soft start feature; power-on of an SD83x will not trip fuses or earth-fault circuit breakers. | Simple DIN-rail mounting Class I Equipment, (when connected to Protective Earth, (PE)) Over-voltage Category III for connection to primary main TN network Protective separation of secondary circuit from primary circuit Accepted for SELV and PELV applications The output of the units is protected against over current (current limit) and over voltage (OVP) |  |

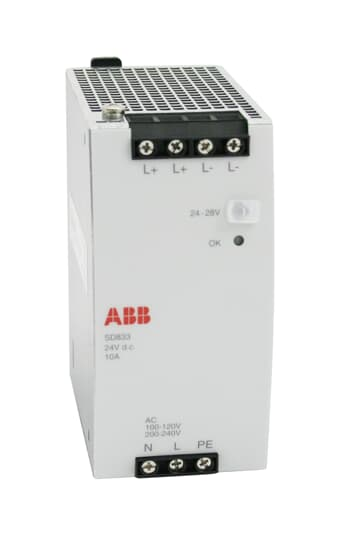

| SD833 | System 800xA DCS | Power supplies & Voters | The SD83x Power Supply Units are designed to meet all the applicable electrical safety data stated by the EN 50178 harmonized European Standard Publication and the additional safety and function data required by EN 61131-2 and UL 508. The secondary output circuitry is accepted for SELV or PELV applications. They are switch-mode Power Supply Units that convert the mains voltage to 24 volts d.c. These power supplies can be utilized for non-redundant and redundant applications. Redundant applications require diode voting units SS823 or SS832. With the type SD83x series Power Supply Units, there is no requirement for the installation of a mains filter. They provide a soft start feature; power-on of an SD83x will not trip fuses or earth-fault circuit breakers. | Simple DIN-rail mounting Class I Equipment, (when connected to Protective Earth, (PE)) Over-voltage Category III for connection to primary main TN network Protective separation of secondary circuit from primary circuit Accepted for SELV and PELV applications The output of the units is protected against over current (current limit) and over voltage (OVP) |  |
| SD834 | System 800xA DCS | Power supplies & Voters | The SD83x Power Supply Units are designed to meet all the applicable electrical safety data stated by the EN 50178 harmonized European Standard Publication and the additional safety and function data required by EN 61131-2 and UL 508. The secondary output circuitry is accepted for SELV or PELV applications. They are switch-mode Power Supply Units that convert the mains voltage to 24 volts d.c. These power supplies can be utilized for non-redundant and redundant applications. Redundant applications require diode voting units SS823 or SS832. With the type SD83x series Power Supply Units, there is no requirement for the installation of a mains filter. They provide a soft start feature; power-on of an SD83x will not trip fuses or earth-fault circuit breakers. | Simple DIN-rail mounting Class I Equipment, (when connected to Protective Earth, (PE)) Over-voltage Category III for connection to primary main TN network Protective separation of secondary circuit from primary circuit Accepted for SELV and PELV applications The output of the units is protected against over current (current limit) and over-voltage (OVP) SD834 can be connected in parallel to increase output power Both a.c. and d.c. input at SD831 and SD834 Floating DC-OK relay contact at SD834 |  |
| SD853 | System 800xA DCS | Power supplies & Voters | The SD85x Power supply units are designed for high efficiency, electronic inrush current limitation, wide operating temperature range, and extraordinarily small size. The lowest power losses and high lifetime expectancy deliver the lowest cost of ownership. The SD85x series complies for use in potentially explosive atmospheres (IECEx Zone 2, ATEX Zone 2, and Class I Div 2). The SD85x series has a built-in power reserve and can easy breaking fuses due to high overload peak current capability. | DIN-rail mounting, Width 39 mm Efficiency up to 95.2 % 20% Output Power Reserves Easy Fuse Breaking due to High Overload Peak Current Active Power Factor Correction (PFC) Minimal Inrush Current Surge Temperature range -25°C and +70°C (derating 6W / °C between 60°C - 70°C) DC-OK Relay Contact Class I Div 2, IECEx Zone 2 and ATEX Zone 2 |  |
| SD854 | System 800xA DCS | Power supplies & Voters | The SD85x Power supply units are designed for high efficiency, electronic inrush current limitation, wide operating temperature range, and extraordinarily small size. The lowest power losses and high lifetime expectancy deliver the lowest cost of ownership. The SD85x series complies for use in potentially explosive atmospheres (IECEx Zone 2 and ATEX Zone 2). The SD85x series has a built-in power reserve and can easy breaking fuses due to high overload peak current capability. | The SD85x Power supply units are designed for high efficiency, electronic inrush current limitation, wide operating temperature range, and extraordinarily small size. The lowest power losses and high lifetime expectancy deliver the lowest cost of ownership. The SD85x series complies for use in potentially explosive atmospheres (IECEx Zone 2 and ATEX Zone 2). The SD85x series has a built-in power reserve and can easy breaking fuses due to high overload peak current capability. |  |
| SS823 | System 800xA DCS | Power supplies & Voters | The Voting Units SS823 and SS832 have been specifically designed to work as control units within a redundant power supply configuration. The output connections from two Power Supply Units are connected to the Voting Unit. The Voting Unit separates the redundant Power Supply Units, supervises the voltage supplied, and generates supervision signals to be connected to the power consumer. Green LED’s, mounted on the front panel of the voting unit, provide a visual indication that the correct output voltage is being delivered. Simultaneously with the green LED illuminating, a voltage-free contact closes the path to the corresponding “OK connector”. Voting Unit trip levels are factory preset. The AC 800M High Integrity and the connected S880 High Integrity I/O system (including field power) shall be supplied from a SELV or PELV power supply (e.g. SD83x) connected through the power voter SS823. The SS823 Voting Unit has a double overvoltage protection circuit on input. | Simple DIN-rail mounting Class I Equipment, (when connected to Protective Earth, (PE)) Over-voltage Category III for connection to primary main TN network Protective separation of the secondary circuit from the primary circuit Accepted for SELV and PELV applications The output of the units is protected against over current (current limit) and over-voltage (OVP) Certified for SIL3 according to IEC 61508 The SS823 unit is also G3 compliant |  |
| SS832 | System 800xA DCS | Power supplies & Voters | The Voting Units SS823 and SS832 have been specifically designed to be employed as control units within a redundant power supply configuration. The output connections from two Power Supply Units are connected to the Voting Unit. The Voting Unit separates the redundant Power Supply Units, supervises the voltage supplied, and generates supervision signals to be connected to the power consumer. Green LED’s, mounted on the front panel of the voting unit, provide a visual indication that the correct output voltage is being delivered. Simultaneously with the green LED illuminating, a voltage-free contact closes the path to the corresponding “OK connector”. Voting Unit trip levels are factory preset. | Simple DIN-rail mounting Class I Equipment, (when connected to Protective Earth, (PE)) Over-voltage Category III for connection to primary main TN network Protective separation of secondary circuit from primary circuit Accepted for SELV and PELV applications The output of the units is protected against over current (current limit) and over voltage (OVP) |  |

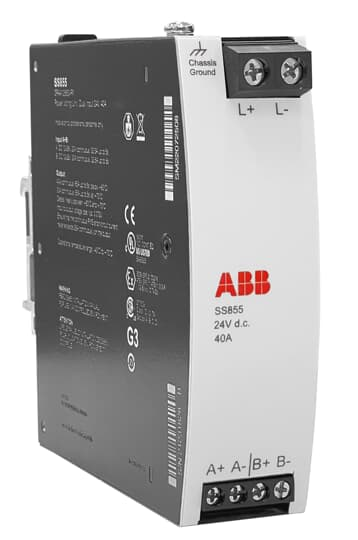

| SS855 | System 800xA DCS | Power supplies & Voters | The SS855 is a voting unit for building redundant power supply systems. It is equipped with two input channels and one output. The two inputs are decoupled by MOSFET technology. SS855 can be used directly for loads up to 20 A (two 20 A power supplies and one SS855). With dual SS855 it is possible to vote redundant 40 A (two 40 A power supplies and two SS855). The inputs are located at the bottom of the SS855 and the output is located at the top of SS855. SS855 does not have any power OK signals, instead use power OK signals on SD834, SD853, or SD854. | Simple DIN-rail mounting Accepted for SELV and PELV applications |  |
| SB822 (Accessories) | System 800xA DCS | Power supplies & Voters | External DIN-rail mounted rechargeable battery unit for AC 800M controllers, including lithium-ion battery, 24V DC connector, and connection cable TK821V020. Width=85 mm. Equivalent amount of Lithium metal=0,8g (0,03oz) | Simple DIN-rail mounting Battery back-up for AC 800M | - |
| Mains Breaker kit, DIN Rail (Accessories) | System 800xA DCS | Power supplies & Voters | For electrical connection of ABB Power Supplies and Voters. What items to use in the kit can vary, depending on country and site specification standards. | 3 fused (6.3 A) double output terminals Kit fit for most global connection needs DIN rail mount | - |
